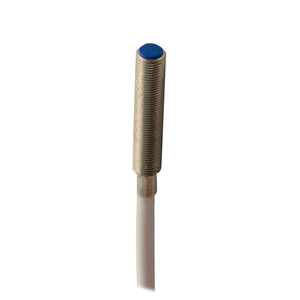

Datasensing AD1/CP-1F Sensors

The Datasensing AD1/CP-1F Sensors are designed for precision and reliability in industrial applications. These sensors feature an extremely compact design with dimensions of M5 x 30 mm for cable and 38 mm for plug length, making them ideal for tight spaces. They operate on a voltage range of 10 to 30 Vdc and can handle an output current of up to 100 mA. The sensors are equipped with a yellow LED output indicator for easy status monitoring and are fully protected against electrical damages, including short-circuit, reverse polarity, and impulsive overvoltage protection. Constructed with a robust AISI303 stainless steel housing, these sensors are built to withstand harsh environments, offering a high degree of protection with an IP67 rating. The M8 plug output and shielded mounting ensure secure and stable connections. With a nominal sensing distance of 0.8mm and an operating distance of 0 to 0.65mm, these sensors are highly accurate, boasting a repeat accuracy of less than 5% and a thermal drift of Sr under 10%. The Datasensing AD1/CP-1F Sensors are designed for proximity functions with a PNP output type and NC output function, supporting a switching frequency of 5kHz. They are compatible with standard targets of 5x5mm FE360 and have specific correction factors for different materials such as copper, aluminum, brass, and stainless steel. The sensors are also equipped with mechanical protection against shocks and vibrations, complying with IEC standards, and are approved by CE and cULus. Supplied with two M5x0.5 nuts, these sensors are easy to install and maintain, making them a reliable choice for various industrial sensing applications.
