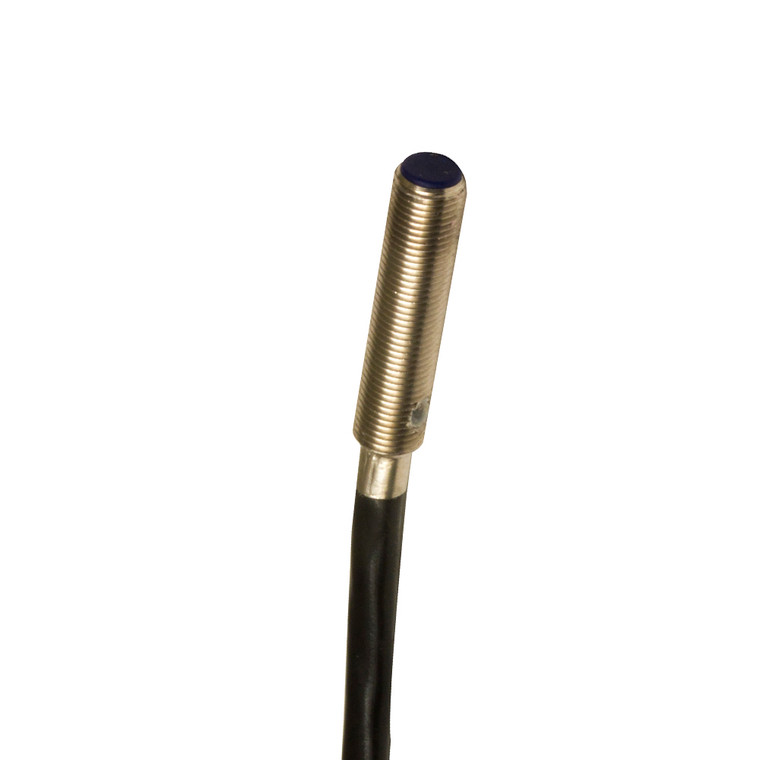

Datasensing AD6/CP-1A Sensors
Datasensing
$66.60
The Datasensing AD6/CP-1A Sensors are high-performance inductive sensors designed for precision and reliability. Featuring a compact M5 short case flush mount, these sensors offer a nominal sensing distance of 0.8mm and an operating distance of 0
0.65mm, making them ideal for proximity detection in various industrial applications. The sensors are equipped with a PNP output type and an NC output function, ensuring efficient signal processing with a switching frequency of 5kHz.
Constructed with a robust AISI303 stainless steel housing, the AD6/CP-1A sensors are built to withstand harsh environments, offering protection against electrical damages, short-circuits, reverse polarity, and impulsive overvoltage. The sensors are also shielded for enhanced durability and feature a yellow LED output indicator for easy status monitoring.
With an operating voltage range of 10...30Vdc and a load current capacity of up to 100mA, these sensors are versatile and energy-efficient. The 2m PVC cable and M8 plug output provide flexible installation options, while the IP67 degree of protection ensures reliable performance in challenging conditions. Additionally, the sensors are CE and cULus approved, meeting international standards for safety and electromagnetic compatibility.
Ideal for applications requiring precise proximity detection, the Datasensing AD6/CP-1A Sensors deliver exceptional performance with minimal thermal drift and repeat accuracy of less than 5%. The sensors are supplied with two M5x0.5 nuts for secure mounting and are designed to operate within a temperature range of -25°C to +70°C, making them suitable for a wide range of industrial environments.
- Nominal sensing distance:
- 0,8mm
- Operanting distance:
- 0 0,65mm
- Standard target:
- 5x5mm FE360
- Correction Factor:
- copper: 0,32 ± 10% / aluminium: 0,26 ± 10% / brass: 0,35 ± 10% / stainless steel: 0,66 ± 10%
- Thermal drift of Sr:
- < 10%
- Repeat Accuracy:
- < 5% (UB 24V Ta=23°C ±5°C)
- Hysteresis:
- 1 20%
- Description:
- M5 short case flush mount
- Functions:
- Proximity
- Output type:
- PNP
- Output Function:
- NC
- Switching frequency:
- 5kHz
- Operating Voltage:
- 10...30Vdc
- No-Load supply current:
- ? 10mA
- Load current:
- ? 100mA
- Leakage current:
- ? 10?A
- Output voltage drop:
- ? 1,5V @100mA
- Max ripple content:
- ? 10%
- LED indicators:
- Yellow LED output state
- Time delay before availability:
- ? 50ms
- Short-circuit protection:
- Yes
- Reverse Polarity Protection:
- Yes
- Impulsive Overvoltage Protection:
- Yes
- Protection against inductive loads:
- Yes
- Mounting:
- Shielded
- Weight:
- 30g
- Housing Material:
- AISI303 Stainless Steel
- Connections:
- 2m PVC Cable
- Active Head Material:
- PBT
- Tightening torque:
- 2Nm
- Material:
- AISI303 Stainless Steel
- Diameter/Dimension:
- M5
- Approvals:
- CE cULus
- EMC compatibility:
- IEC 60947-5-2
- Shocks and vibrations:
- Vibration IEC 60068-2-6 / Shock IEC 60068-2-27
- Degree of protection:
- IP67
- Supplied Accessories:
- 2 nuts M5x0.5
- Mechanical Protection:
- IP67
- 2D Files:
- View
- 3D Files:
- View
- CAD Files:
- View
- EU Declarations:
- View
- Catalog:
- View
- User Manuals:
- View
