Datasensing AE1/AN-1A86 Sensors
Datasensing
$45.65

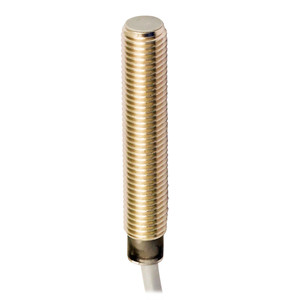

The Datasensing AE1/AN-1A86 Inductive Sensor is a high-performance proximity sensor designed for precision and reliability. Featuring an M8 shielded design, this sensor operates with a nominal sensing distance of 1.5mm and an operating range of 0 to 1.21mm, making it ideal for detecting standard targets of 8x8mm FE360. With a robust nickel-plated brass housing and a 5-meter PVC cable, it ensures durability and ease of installation.
This sensor is equipped with an NPN output type and a normally open (NO) output function, providing a switching frequency of up to 5kHz. It operates efficiently within a voltage range of 10 to 30Vdc, with a no-load supply current of ? 10mA and a load current of ? 200mA. The sensor's design includes essential protections such as short-circuit, reverse polarity, and impulsive overvoltage protection, ensuring reliable performance in various industrial environments.
The AE1/AN-1A86 sensor is engineered to withstand harsh conditions, with an operating temperature range of -25°C to +70°C and mechanical protection rated at IP67. It is compliant with CE and UR approvals and meets EMC compatibility standards IEC 60947-5-2. Additionally, it includes two M8x1 nuts for secure mounting and features a yellow LED indicator for output state visibility. With a compact dimension of M8 x 1 and a length of 45.5mm, this sensor is an excellent choice for applications requiring precise and dependable proximity detection.
- Nominal sensing distance:
- 1,5mm
- Operanting distance:
- 0 1,21mm
- Standard target:
- 8x8mm FE360
- Correction Factor:
- copper: 0,29 / aluminium: 0,38 / brass: 0,49 / stainless steel: 0,78
- Thermal drift of Sr:
- < 10%
- Repeat Accuracy:
- < 5% (UB 24V Ta=23°C ±5°C)
- Hysteresis:
- 1 20%
- Description:
- M8 standard flush mount
- Functions:
- Proximity
- Output type:
- NPN
- Output Function:
- NO
- Switching frequency:
- 5kHz
- Operating Voltage:
- 10...30Vdc
- No-Load supply current:
- ? 10mA
- Load current:
- ? 200mA
- Leakage current:
- ? 10?A
- Output voltage drop:
- ? 1,8V @200mA
- Max ripple content:
- ? 10%
- LED indicators:
- Yellow LED output state
- Time delay before availability:
- ? 50ms
- Short-circuit protection:
- Yes
- Reverse Polarity Protection:
- Yes
- Impulsive Overvoltage Protection:
- Yes
- Protection against inductive loads:
- Yes
- Mounting:
- Shielded
- Housing Material:
- Nickel-plated brass
- Connections:
- 5m PVC Cable
- Active Head Material:
- PBT
- Tightening torque:
- 3Nm
- Material:
- Nickel-plated brass
- Diameter/Dimension:
- M8
- Approvals:
- CE UR
- EMC compatibility:
- IEC 60947-5-2
- Shocks and vibrations:
- Vibration IEC 60068-2-6 / Shock IEC 60068-2-27
- Supplied Accessories:
- 2 nuts M8x1
- Dimensions:
- M8 x 1 / L = 45,5mm
- Operating Temperature:
- -25°C +70°C
- Mechanical Protection:
- IP67
- User Manuals:
- View
