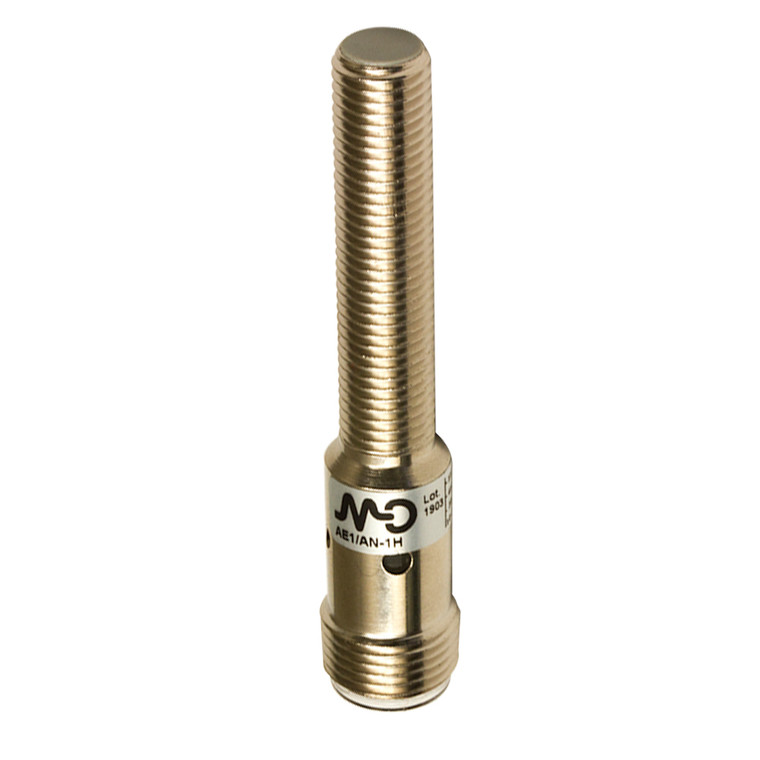

The Datasensing AE1/AP-1HAN Inductive Sensor is designed for precision and reliability in industrial applications. This M8 shielded sensor features a NO/PNP connection with an M12 plug, ensuring seamless integration into your systems. It is certified for use in hazardous environments, meeting II 3G Ex nA IIC T5 and II 3D Ex tD A22 standards, and offers robust protection with an IP67 rating.
With a nominal sensing distance of 1.5mm and an operating range of 0 to 1.21mm, this sensor is ideal for detecting standard targets of 8x8mm FE360. It boasts a high switching frequency of 5kHz and operates efficiently within a voltage range of 10 to 30Vdc. The sensor is equipped with a yellow LED indicator for output state, and features short-circuit, reverse polarity, and impulsive overvoltage protection for enhanced durability.
Constructed from nickel-plated brass with a PBT active head, the AE1/AP-1HAN is built to withstand harsh conditions, withstanding temperatures from -25°C to +70°C. It includes two M8x1 nuts for secure mounting and is compliant with EMC standards IEC 60947-5-2. The sensor's compact design, with dimensions of M8 x 1 and a length of 60mm, makes it a versatile choice for various industrial applications.
- Nominal sensing distance:
- 1,5mm
- Operanting distance:
- 0 1,21mm
- Standard target:
- 8x8mm FE360
- Correction Factor:
- copper: 0,29 / aluminium: 0,38 / brass: 0,49 / stainless steel: 0,78
- Thermal drift of Sr:
- < 10%
- Repeat Accuracy:
- < 5% (UB 24V Ta=23°C ±5°C)
- Hysteresis:
- 1 20%
- Description:
- M8 standard flush mount
- Functions:
- Proximity
- Output type:
- PNP
- Output Function:
- NO
- Switching frequency:
- 5kHz
- Operating Voltage:
- 10...30Vdc
- No-Load supply current:
- ? 10mA
- Load current:
- ? 200mA
- Leakage current:
- ? 10?A
- Output voltage drop:
- ? 1,8V @200mA
- Max ripple content:
- ? 10%
- LED indicators:
- Yellow LED output state
- Time delay before availability:
- ? 50ms
- Short-circuit protection:
- Yes
- Reverse Polarity Protection:
- Yes
- Impulsive Overvoltage Protection:
- Yes
- Protection against inductive loads:
- Yes
- Mounting:
- Shielded
- Housing Material:
- Nickel-plated brass
- Connections:
- M12 Plug
- Active Head Material:
- PBT
- Tightening torque:
- 3Nm
- Material:
- Nickel-plated brass
- Diameter/Dimension:
- M8
- Approvals:
- CE UR II 3G Ex nA IIC T5 Gc II 3D Ex tc IIIB T90°C Dc
- EMC compatibility:
- IEC 60947-5-2
- Shocks and vibrations:
- Vibration IEC 60068-2-6 / Shock IEC 60068-2-27
- Supplied Accessories:
- 2 nuts M8x1
- Dimensions:
- M8 x 1 / L = 60mm
- Operating Temperature:
- -25°C +70°C
- Mechanical Protection:
- IP67
- User Manuals:
- View
