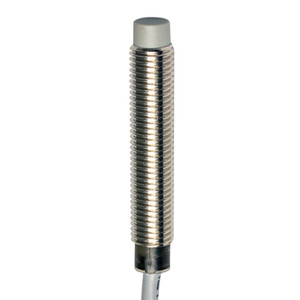

Datasensing AE1/AP-3A8FVF80 Sensors

The Datasensing AE1/AP-3A8FVF80 is a high-performance inductive sensor designed for precision and reliability. Featuring an M8 LD shielded NO/PNP configuration, this sensor is equipped with a 200mm axial PUR cable and an M8 3-pin plug for seamless connectivity. It offers a nominal sensing distance of 2mm and operates effectively within a range of 0 to 1.62mm, making it ideal for detecting standard targets of 8x8mm FE360. The sensor's correction factors are optimized for various materials, including copper (0.35), aluminium (0.43), brass (0.52), and stainless steel (0.78). Engineered for stability, it boasts a thermal drift of Sr under 10% and a repeat accuracy of less than 5% at 24V and 23°C ±5°C. The hysteresis ranges from 1 to 20%, ensuring consistent performance. With a switching frequency of 5kHz and an operating voltage between 10 to 30Vdc, it supports a load current of up to 200mA while maintaining a low leakage current of ? 10?A. The output voltage drop is minimal at ? 1.8V @200mA, and the sensor is protected against short-circuits, reverse polarity, impulsive overvoltage, and inductive loads. Constructed with a nickel-plated brass housing and an active head made of PBT, the sensor is robust and durable, with an IP67 mechanical protection rating. It is designed for shielded mounting and includes two M8x1 nuts for secure installation. The sensor is CE and UR approved, with EMC compatibility per IEC 60947-5-2 standards, and is resistant to shocks and vibrations as per IEC 60068-2-6 and IEC 60068-2-27. Operating efficiently in temperatures ranging from -25°C to +70°C, the Datasensing AE1/AP-3A8FVF80 is a reliable choice for demanding industrial applications.
