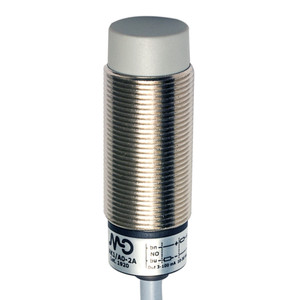

The Datasensing AE1/AP-4AAN Sensors are high-performance inductive sensors designed for precise proximity detection. Featuring an M8 unshielded design, these sensors operate with a nominal sensing distance of 4mm and an operating distance of 0 to 3.24mm. They are equipped with a PNP output type and a normally open (NO) output function, ensuring reliable performance in various applications. The sensors are constructed with a durable nickel-plated brass housing and an active head made of PBT, providing robust protection against environmental factors.
These sensors are suitable for use in hazardous environments, with approvals for II 3G Ex nA IIC T5 and II 3D Ex tD A22, and offer a high level of mechanical protection with an IP67 rating. They are capable of operating within a temperature range of -25°C to +70°C and feature a switching frequency of 5kHz. The sensors are equipped with a 5m PVC cable for easy installation and connectivity.
Additional features include short-circuit, reverse polarity, and impulsive overvoltage protection, as well as protection against inductive loads. The sensors have a low no-load supply current of ? 10mA and a load current capacity of ? 200mA. They also feature a yellow LED indicator for output state visibility and a time delay before availability of ? 50ms. With a high repeat accuracy of < 5% and a hysteresis range of 1 to 20%, these sensors are ideal for applications requiring precise and reliable proximity detection.
- Nominal sensing distance:
- 4mm
- Operanting distance:
- 0 3,24mm
- Standard target:
- 12x12mm FE360
- Correction Factor:
- copper: 0,47 / aluminium: 0,52 / brass: 0,58 / stainless steel: 0,79
- Thermal drift of Sr:
- < 10%
- Repeat Accuracy:
- < 5% (UB 24V Ta=23°C ±5°C)
- Hysteresis:
- 1 20%
- Description:
- M8 standard no-flush mount
- Functions:
- Proximity
- Output type:
- PNP
- Output Function:
- NO
- Switching frequency:
- 5kHz
- Operating Voltage:
- 10...30Vdc
- No-Load supply current:
- ? 10mA
- Load current:
- ? 200mA
- Leakage current:
- ? 10?A
- Output voltage drop:
- ? 1,8V @200mA
- Max ripple content:
- ? 10%
- LED indicators:
- Yellow LED output state
- Time delay before availability:
- ? 50ms
- Short-circuit protection:
- Yes
- Reverse Polarity Protection:
- Yes
- Impulsive Overvoltage Protection:
- Yes
- Protection against inductive loads:
- Yes
- Mounting:
- Unshielded
- Housing Material:
- Nickel-plated brass
- Connections:
- 2m PVC Cable
- Active Head Material:
- PBT
- Tightening torque:
- 3Nm
- Material:
- Nickel-plated brass
- Diameter/Dimension:
- M8
- Approvals:
- CE UR II 3G Ex nA IIC T5 Gc II 3D Ex tc IIIB T90°C Dc
- EMC compatibility:
- IEC 60947-5-2
- Shocks and vibrations:
- Vibration IEC 60068-2-6 / Shock IEC 60068-2-27
- Supplied Accessories:
- 2 nuts M8x1
- Dimensions:
- M8 x 1 / L = 45,5mm
- Operating Temperature:
- -25°C +70°C
- Mechanical Protection:
- IP67
