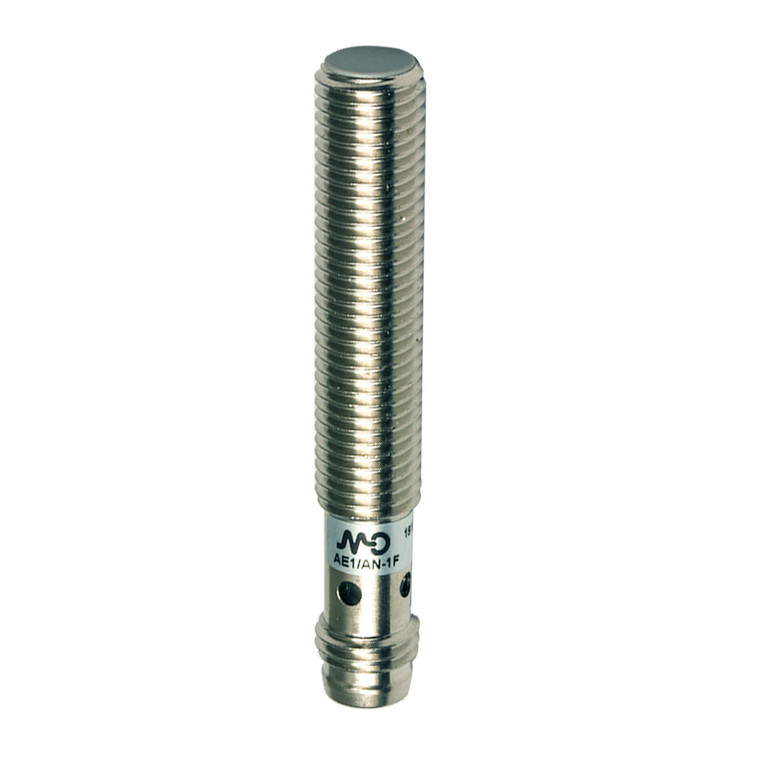

Datasensing AE1/CN-3F Sensors
Datasensing
$52.16
The Datasensing AE1/CN-3F Sensors are designed for precision and reliability in industrial applications. These inductive sensors feature a compact M8 standard flush mount design, making them ideal for tight spaces. With a nominal sensing distance of 2mm and an operating distance of 0 to 1.62mm, they provide accurate proximity detection. The sensors are equipped with a 360° visible LED status indicator for easy monitoring and are housed in durable nickel-plated brass with IP67 protection, ensuring resistance to dust and water ingress.
These sensors offer complete protection against electrical damages, including short-circuit, reverse polarity, and impulsive overvoltage protection. They are capable of handling a load current of up to 200mA with a low output voltage drop of ? 1.8V at 200mA. The NPN output type with NC output function ensures reliable switching with a frequency of up to 5kHz. The sensors are compatible with a wide range of materials, with correction factors for copper, aluminum, brass, and stainless steel.
Designed to withstand harsh environments, the AE1/CN-3F sensors operate within a temperature range of -25°C to +70°C and are compliant with EMC standards IEC 60947-5-2. They are also approved by CE and UR, ensuring high-quality performance. The sensors come with two M8x1 nuts for secure mounting and are available in standard and long-distance models, with ATEX models available upon request for hazardous environments.
- Nominal sensing distance:
- 2mm
- Operanting distance:
- 0 1,62mm
- Standard target:
- 8x8mm FE360
- Correction Factor:
- copper: 0,35 / aluminium: 0,43 / brass: 0,52 / stainless steel: 0,78
- Thermal drift of Sr:
- < 10%
- Repeat Accuracy:
- < 5% (UB 24V Ta=23°C ±5°C)
- Hysteresis:
- 1 20%
- Description:
- M8 standard flush mount
- Functions:
- Proximity
- Output type:
- NPN
- Output Function:
- NC
- Switching frequency:
- 5kHz
- Operating Voltage:
- 10...30Vdc
- No-Load supply current:
- ? 10mA
- Load current:
- ? 200mA
- Leakage current:
- ? 10?A
- Output voltage drop:
- ? 1,8V @200mA
- Max ripple content:
- ? 10%
- LED indicators:
- Yellow LED output state
- Time delay before availability:
- ? 50ms
- Short-circuit protection:
- Yes
- Reverse Polarity Protection:
- Yes
- Impulsive Overvoltage Protection:
- Yes
- Protection against inductive loads:
- Yes
- Mounting:
- Shielded
- Weight:
- 20g
- Housing Material:
- Nickel-plated brass
- Connections:
- M8 Plug
- Active Head Material:
- PBT
- Tightening torque:
- 3Nm
- Material:
- Nickel-plated brass
- Diameter/Dimension:
- M8
- Approvals:
- CE UR
- EMC compatibility:
- IEC 60947-5-2
- Shocks and vibrations:
- Vibration IEC 60068-2-6 / Shock IEC 60068-2-27
- Degree of protection:
- IP67
- Supplied Accessories:
- 2 nuts M8x1
- Mechanical Protection:
- IP67
- 2D Files:
- View
- 3D Files:
- View
- CAD Files:
- View
- EU Declarations:
- View
- Catalog:
- View
- User Manuals:
- View
