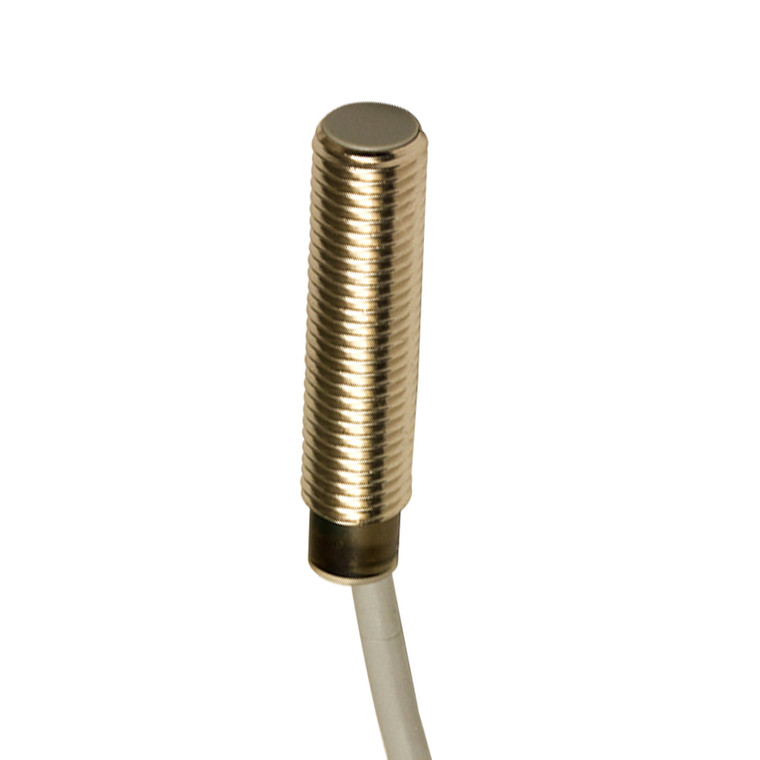

Datasensing AE6/AN-1A82 Sensors

The Datasensing AE6/AN-1A82 Sensor is a high-performance inductive sensor designed for precision and reliability. Featuring an M8 short shielded design, this sensor operates with a nominal sensing distance of 1.5mm and an operating range of 0 to 1.21mm, making it ideal for detecting standard targets of 8x8mm FE360. With a robust nickel-plated brass housing and PBT active head material, it ensures durability and longevity in various industrial environments. This sensor is equipped with an NPN output type and NO output function, providing a switching frequency of 5kHz. It operates efficiently within a voltage range of 10 to 30Vdc, with a no-load supply current of ? 10mA and a load current of ? 200mA. The sensor's design includes essential protections such as short-circuit, reverse polarity, impulsive overvoltage, and protection against inductive loads, ensuring reliable performance. The AE6/AN-1A82 features a yellow LED indicator for output state, a time delay before availability of ? 50ms, and a maximum ripple content of ? 10%. Its mechanical protection is rated at IP67, making it resistant to dust and water ingress. The sensor is also compliant with CE and UR approvals, and its EMC compatibility aligns with IEC 60947-5-2 standards. With a compact dimension of M8 x 1 and a length of 35.5mm, this sensor is easy to install using the supplied M8x1 nuts. It can withstand operating temperatures ranging from -25°C to +70°C and is designed to endure shocks and vibrations as per IEC 60068-2-6 and IEC 60068-2-27 standards. The AE6/AN-1A82 is an excellent choice for applications requiring precise proximity detection and robust performance.
