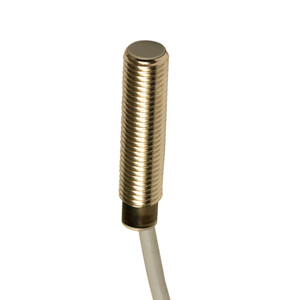

Datasensing AE6/AP-1AAN Sensors
Datasensing
$54.52
The Datasensing AE6/AP-1AAN Sensors are high-performance inductive sensors designed for precise proximity detection. Featuring an M8 shielded short case, these sensors offer a nominal sensing distance of 1.5mm and an operating range of 0 to 1.21mm, making them ideal for applications requiring accurate and reliable sensing. The sensors are equipped with a PNP output type and a normally open (NO) output function, ensuring seamless integration into various systems.
Constructed with nickel-plated brass housing and a PBT active head, these sensors are built to withstand harsh environments, with an IP67 mechanical protection rating. They are capable of operating in temperatures ranging from -25°C to +70°C and are resistant to shocks and vibrations as per IEC standards. The sensors come with a 2m PVC cable for easy connectivity and are supplied with two M8x1 nuts for secure mounting.
With a switching frequency of 5kHz and a load current capacity of up to 200mA, these sensors provide fast and efficient performance. They include essential protective features such as short-circuit protection, reverse polarity protection, and impulsive overvoltage protection, ensuring durability and reliability in demanding applications. The yellow LED indicator provides a clear visual output state, enhancing user convenience.
Approved with CE and UR certifications, the Datasensing AE6/AP-1AAN Sensors comply with EMC compatibility standards (IEC 60947-5-2) and are suitable for use in explosive atmospheres, classified under II 3G Ex nA IIC T5 Gc and II 3D Ex tc IIIB T90°C Dc. These sensors are an excellent choice for industries requiring precise and robust sensing solutions.
- Nominal sensing distance:
- 1,5mm
- Operanting distance:
- 0 1,21mm
- Standard target:
- 8x8mm FE360
- Correction Factor:
- copper: 0,29 / aluminium: 0,38 / brass: 0,49 / stainless steel: 0,78
- Thermal drift of Sr:
- < 10%
- Repeat Accuracy:
- < 5% (UB 24V Ta=23°C ±5°C)
- Hysteresis:
- 1 20%
- Description:
- M8 short case flush mount
- Functions:
- Proximity
- Output type:
- PNP
- Output Function:
- NO
- Switching frequency:
- 5kHz
- Operating Voltage:
- 10...30Vdc
- No-Load supply current:
- ? 10mA
- Load current:
- ? 200mA
- Leakage current:
- ? 10?A
- Output voltage drop:
- ? 1,8V @200mA
- Max ripple content:
- ? 10%
- LED indicators:
- Yellow LED output state
- Time delay before availability:
- ? 50ms
- Short-circuit protection:
- Yes
- Reverse Polarity Protection:
- Yes
- Impulsive Overvoltage Protection:
- Yes
- Protection against inductive loads:
- Yes
- Mounting:
- Shielded
- Housing Material:
- Nickel-plated brass
- Connections:
- 2m PVC Cable
- Active Head Material:
- PBT
- Tightening torque:
- 3Nm
- Material:
- Nickel-plated brass
- Diameter/Dimension:
- M8
- Approvals:
- CE UR II 3G Ex nA IIC T5 Gc II 3D Ex tc IIIB T90°C Dc
- EMC compatibility:
- IEC 60947-5-2
- Shocks and vibrations:
- Vibration IEC 60068-2-6 / Shock IEC 60068-2-27
- Supplied Accessories:
- 2 nuts M8x1
- Dimensions:
- M8 x 1 / L = 35,5mm
- Operating Temperature:
- -25°C +70°C
- Mechanical Protection:
- IP67
- User Manuals:
- View
