Datasensing AE6/AP-3A86 Sensors

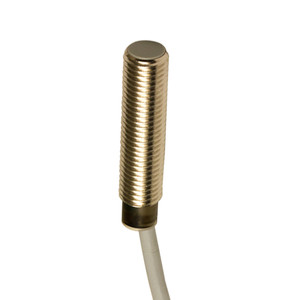

The Datasensing AE6/AP-3A86 Sensors are high-performance inductive sensors designed for precision and reliability. Featuring an M8 short case with flush mount capabilities, these sensors are ideal for proximity detection in various industrial applications. With a nominal sensing distance of 2mm and an operating range of 0 to 1.62mm, they ensure accurate detection of standard targets measuring 8x8mm FE360. The sensors offer a PNP output type with a normally open (NO) function, and a switching frequency of 5kHz, making them suitable for high-speed operations. Constructed with a durable nickel-plated brass housing and a PBT active head, these sensors are built to withstand harsh environments, offering mechanical protection rated at IP67. They are equipped with a 5m PVC cable for easy connectivity and feature a yellow LED indicator for output state visibility. The sensors are designed with multiple protective features, including short-circuit, reverse polarity, impulsive overvoltage, and inductive load protection, ensuring long-lasting performance. Operating within a voltage range of 10 to 30Vdc, the sensors maintain a low no-load supply current of ? 10mA and a load current of ? 200mA. They exhibit minimal thermal drift and repeat accuracy, with a hysteresis range of 1 to 20%. The sensors are compliant with CE and UR approvals and meet EMC compatibility standards as per IEC 60947-5-2. Additionally, they are resistant to shocks and vibrations, adhering to IEC 60068-2-6 and IEC 60068-2-27 standards. Supplied with two M8x1 nuts, these sensors are ready for immediate installation and operation in temperatures ranging from -25°C to +70°C.
