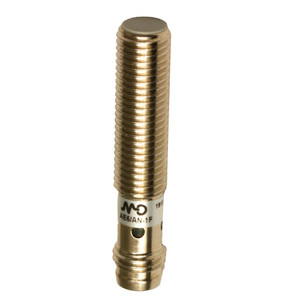

Datasensing AE6/AP-3F4W Sensors

The Datasensing AE6/AP-3F4W Sensors are high-performance inductive sensors designed for precision and reliability. Featuring a compact M8 short case with flush mount capabilities, these sensors are ideal for proximity detection in various industrial applications. The housing is constructed from durable AISI303 stainless steel, ensuring robust protection and longevity. With a nominal sensing distance of 2mm and an operating distance of 0 to 1.62mm, these sensors are optimized for detecting standard targets of 8x8mm FE360. They offer a PNP output type with a normally open (NO) function, and a high switching frequency of 5kHz, making them suitable for fast-paced environments. The sensors are equipped with advanced protection features, including short-circuit, reverse polarity, impulsive overvoltage, and protection against inductive loads. They operate within a voltage range of 10 to 30Vdc, with a no-load supply current of ? 10mA and a load current of ? 200mA. The output voltage drop is minimal at ? 1.8V @200mA, ensuring efficient performance. The yellow LED indicator provides a clear output state, and the sensors are ready for use with a time delay of ? 50ms. Designed to withstand harsh conditions, the sensors have an IP67 mechanical protection rating and are compliant with EMC compatibility standards IEC 60947-5-2. They are also resistant to shocks and vibrations as per IEC 60068-2-6 and IEC 60068-2-27 standards. The sensors come with two M8x1 nuts for easy installation and have a tightening torque of 3Nm. Operating efficiently in temperatures ranging from -25°C to +70°C, these sensors are CE and UR approved, making them a reliable choice for demanding industrial environments.
