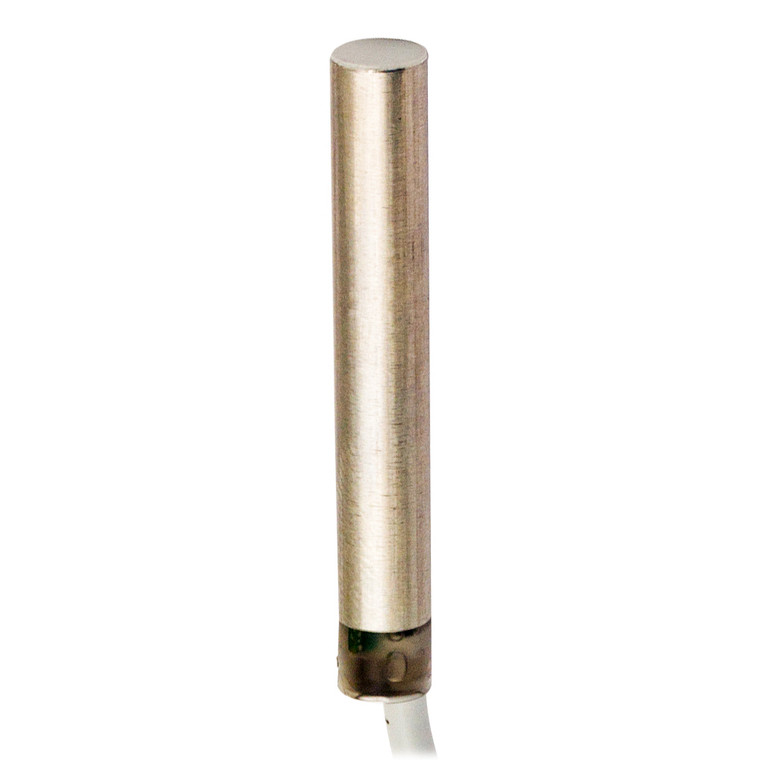

Datasensing AH1/AN-1A Sensors
Datasensing
$45.03
The Datasensing AH1/AN-1A Sensors are designed for precision and reliability in compact spaces. With an extremely reduced dimension of 6.5 mm, these inductive sensors feature a robust stainless steel housing and a 360 visible LED status indicator. They offer IP67 protection, ensuring durability in harsh environments. The sensors are equipped with a 2m PVC cable for easy installation and are shielded for optimal performance. They operate with a nominal sensing distance of 1.5mm and are suitable for standard targets of 8x8mm FE360. The sensors provide complete protection against electrical damages, including short-circuit, reverse polarity, and impulsive overvoltage protection. They are capable of handling a load current of up to 200mA with a switching frequency of 5kHz. The AH1/AN-1A models are available in both standard and long-distance versions, with options for ATEX models upon request. Ideal for applications requiring high repeat accuracy and minimal thermal drift, these sensors are CE and UR approved, ensuring compliance with international standards.
- Nominal sensing distance:
- 1,5mm
- Operanting distance:
- 0 1,21mm
- Standard target:
- 8x8mm FE360
- Correction Factor:
- copper: 0,06 / aluminium: 0,13 / brass: 0,24 / stainless steel: 0,56
- Thermal drift of Sr:
- < 10%
- Repeat Accuracy:
- < 5% (UB 24V Ta=23°C ±5°C)
- Hysteresis:
- 1 20%
- Description:
- Ø6,5 standard flush mount
- Functions:
- Proximity
- Output type:
- NPN
- Output Function:
- NO
- Switching frequency:
- 5kHz
- Operating Voltage:
- 10...30Vdc
- No-Load supply current:
- ? 10mA
- Load current:
- ? 200mA
- Leakage current:
- ? 10?A
- Output voltage drop:
- ? 1,8V @200mA
- Max ripple content:
- ? 10%
- LED indicators:
- Yellow LED output state
- Time delay before availability:
- ? 50ms
- Short-circuit protection:
- Yes
- Reverse Polarity Protection:
- Yes
- Impulsive Overvoltage Protection:
- Yes
- Protection against inductive loads:
- Yes
- Mounting:
- Shielded
- Weight:
- 35g
- Housing Material:
- AISI303 Stainless Steel
- Connections:
- 2m PVC Cable
- Active Head Material:
- PBT
- Material:
- AISI303 Stainless Steel
- Diameter/Dimension:
- Ø6,5
- Approvals:
- CE UR
- EMC compatibility:
- IEC 60947-5-2
- Shocks and vibrations:
- Vibration IEC 60068-2-6 / Shock IEC 60068-2-27
- Degree of protection:
- IP67
- Mechanical Protection:
- IP67
