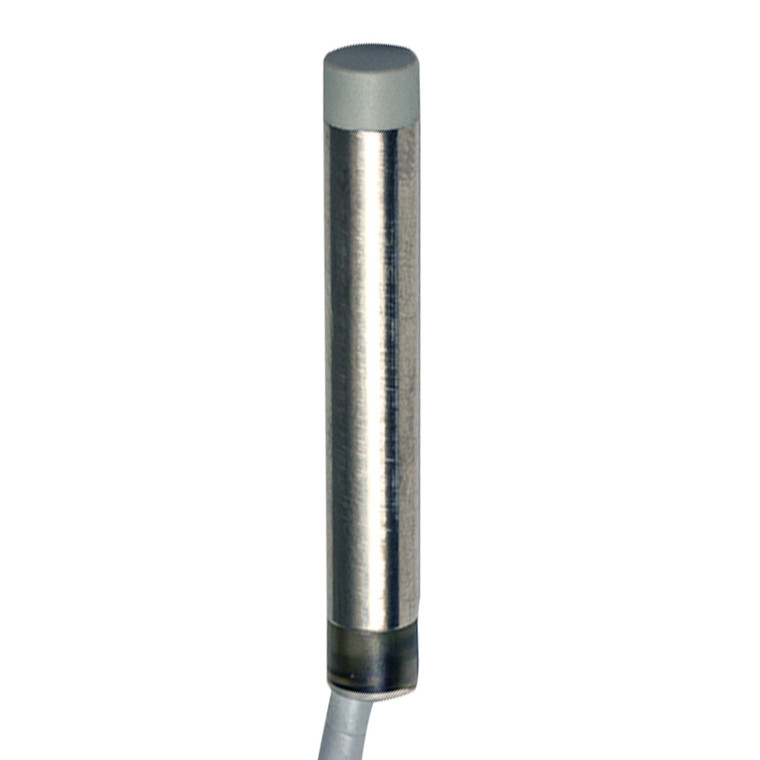

Datasensing AH1/AN-2A Sensors

The Datasensing AH1/AN-2A Sensors are designed for precision and reliability in industrial applications. With an inductive sensor diameter of 6.5 mm, these sensors are unshielded and feature a NO/NPN output type, making them ideal for proximity detection tasks. The sensors come with a 2-meter axial cable for flexible installation options. Constructed with a robust stainless steel housing, these sensors are built to withstand harsh environments, offering IP67 protection against dust and water ingress. The LED status indicator provides a 360° visible signal, ensuring easy monitoring of the sensor's operational state. The AH1/AN-2A Sensors are equipped with advanced protection features, including short-circuit, reverse polarity, and impulsive overvoltage protection, safeguarding against electrical damages. They operate efficiently within a voltage range of 10 to 30Vdc, with a low no-load supply current of ? 10mA and a load current capacity of ? 200mA. These sensors are designed for standard and long-distance applications, with a nominal sensing distance of 2.5mm and an operating distance of 0 to 2.02mm. They are compatible with standard targets of 8x8mm FE360 and offer correction factors for various materials, including copper, aluminum, brass, and stainless steel. The AH1/AN-2A Sensors are CE and UR approved, ensuring compliance with international standards. They are also EMC compatible with IEC 60947-5-2 and can withstand shocks and vibrations as per IEC 60068-2-6 and IEC 60068-2-27 standards. With a mechanical protection rating of IP67, these sensors are suitable for a wide range of industrial environments, operating efficiently in temperatures ranging from -25°C to +70°C.
