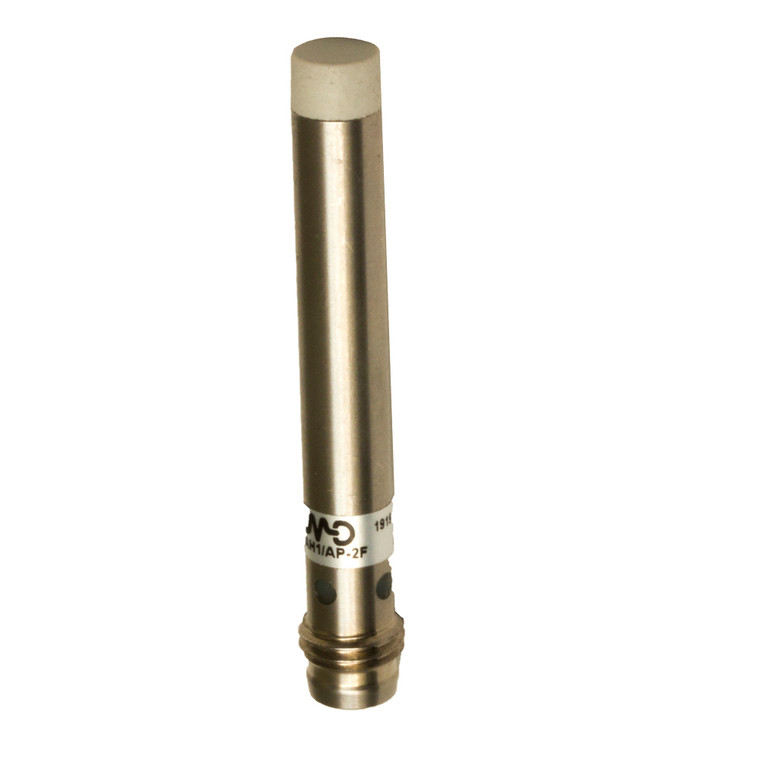

Datasensing AH1/AN-2F Sensors
Datasensing
$47.69
The Datasensing AH1/AN-2F Sensors are designed for precision and reliability in industrial applications. With an extremely compact size of Ø6,5 mm, these inductive sensors are perfect for tight spaces. The robust stainless steel housing ensures durability, while the 360° visible LED status indicator provides clear operational feedback. Rated with an IP67 protection degree, these sensors are resistant to dust and water, making them suitable for harsh environments. They offer complete protection against electrical damages, including short-circuit, reverse polarity, and impulsive overvoltage protection. The sensors feature a nominal sensing distance of 2.5mm and an operating distance of 0 to 2.02mm, with a standard target size of 8x8mm FE360. They are equipped with an NPN output type and NO output function, supporting a switching frequency of 5kHz. The sensors operate within a voltage range of 10 to 30Vdc, with a no-load supply current of ? 10mA and a load current of ? 200mA. The yellow LED output state indicator ensures easy monitoring, and the sensors are designed for unshielded mounting. With a weight of just 5g and dimensions of Ø6,5 / L = 50mm, these sensors are lightweight yet sturdy. They are approved with CE UR certifications and comply with EMC compatibility standards IEC 60947-5-2, ensuring reliable performance in various industrial settings.
- Nominal sensing distance:
- 2,5mm
- Operanting distance:
- 0 2,02mm
- Standard target:
- 8x8mm FE360
- Correction Factor:
- copper: 0,39 / aluminium: 0,45 / brass: 0,54 / stainless steel: 0,81
- Thermal drift of Sr:
- < 10%
- Repeat Accuracy:
- < 5% (UB 24V Ta=23°C ±5°C)
- Hysteresis:
- 1 20%
- Description:
- Ø6,5 standard no-flush mount
- Functions:
- Proximity
- Output type:
- NPN
- Output Function:
- NO
- Switching frequency:
- 5kHz
- Operating Voltage:
- 10...30Vdc
- No-Load supply current:
- ? 10mA
- Load current:
- ? 200mA
- Leakage current:
- ? 10?A
- Output voltage drop:
- ? 1,8V @200mA
- Max ripple content:
- ? 10%
- LED indicators:
- Yellow LED output state
- Time delay before availability:
- ? 50ms
- Short-circuit protection:
- Yes
- Reverse Polarity Protection:
- Yes
- Impulsive Overvoltage Protection:
- Yes
- Protection against inductive loads:
- Yes
- Mounting:
- Unshielded
- Weight:
- 5g
- Housing Material:
- AISI303 Stainless Steel
- Connections:
- M8 Plug
- Active Head Material:
- PBT
- Material:
- AISI303 Stainless Steel
- Diameter/Dimension:
- Ø6,5
- Approvals:
- CE UR
- EMC compatibility:
- IEC 60947-5-2
- Shocks and vibrations:
- Vibration IEC 60068-2-6 / Shock IEC 60068-2-27
- Degree of protection:
- IP67
- Mechanical Protection:
- IP67
