Datasensing AH1/AN-4A Sensors
Datasensing
$54.75

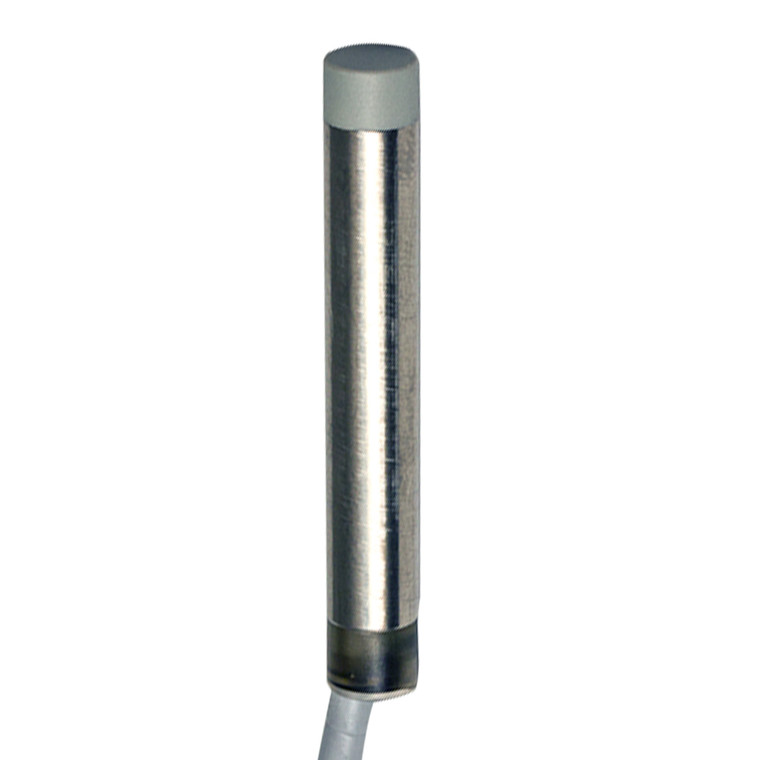

The Datasensing AH1/AN-4A Sensors are designed for precision and reliability in compact spaces. With an extremely reduced dimension of Ø6.5 mm, these inductive sensors feature a robust stainless steel housing and a 360° visible LED status indicator. They offer IP67 protection, ensuring durability in harsh environments. The sensors are equipped with a 2m PVC cable for easy installation and are capable of operating within a temperature range of -25°C to +70°C.
These sensors provide a nominal sensing distance of 4mm and an operating distance of 0 to 3.24mm, making them ideal for proximity detection. They are designed with a standard target size of 12x12mm FE360 and offer correction factors for various materials, including copper, aluminum, brass, and stainless steel. The sensors boast a high switching frequency of 5kHz and are protected against electrical damages, including short-circuit, reverse polarity, and impulsive overvoltage protection.
The AH1/AN-4A Sensors are available in both standard and long-distance models, with options for standard and short body housing. They are CE and UR approved, ensuring compliance with international standards. Additionally, ATEX models for category 3 environments are available upon request. With a weight of just 35g and a length of 45.5mm, these sensors are perfect for applications requiring minimal space without compromising on performance.
- Nominal sensing distance:
- 4mm
- Operanting distance:
- 0 3,24mm
- Standard target:
- 12x12mm FE360
- Correction Factor:
- copper: 0,42 / aluminium: 0,47 / brass: 0,52 / stainless steel: 0,77
- Thermal drift of Sr:
- < 10%
- Repeat Accuracy:
- < 5% (UB 24V Ta=23°C ±5°C)
- Hysteresis:
- 1 20%
- Description:
- Ø6,5 standard no-flush mount
- Functions:
- Proximity
- Output type:
- NPN
- Output Function:
- NO
- Switching frequency:
- 5kHz
- Operating Voltage:
- 10...30Vdc
- No-Load supply current:
- ? 10mA
- Load current:
- ? 200mA
- Leakage current:
- ? 10?A
- Output voltage drop:
- ? 1,8V @200mA
- Max ripple content:
- ? 10%
- LED indicators:
- Yellow LED output state
- Time delay before availability:
- ? 50ms
- Short-circuit protection:
- Yes
- Reverse Polarity Protection:
- Yes
- Impulsive Overvoltage Protection:
- Yes
- Protection against inductive loads:
- Yes
- Mounting:
- Unshielded
- Weight:
- 35g
- Housing Material:
- AISI303 Stainless Steel
- Connections:
- 2m PVC Cable
- Active Head Material:
- PBT
- Material:
- AISI303 Stainless Steel
- Diameter/Dimension:
- Ø6,5
- Approvals:
- CE UR
- EMC compatibility:
- IEC 60947-5-2
- Shocks and vibrations:
- Vibration IEC 60068-2-6 / Shock IEC 60068-2-27
- Degree of protection:
- IP67
- Mechanical Protection:
- IP67
