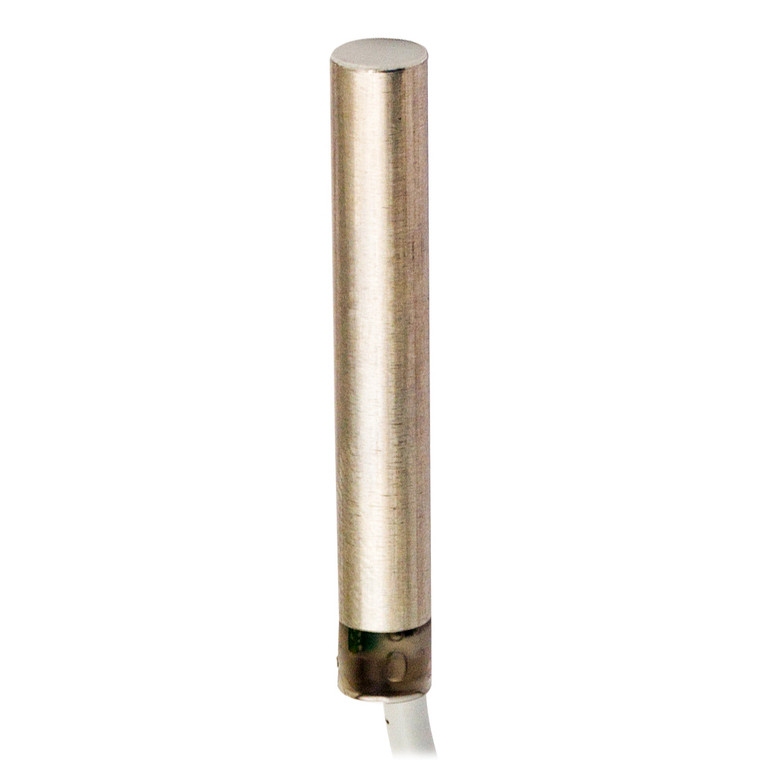

Datasensing AH1/AP-1A Sensors
Datasensing
$45.03
The Datasensing AH1/AP-1A Sensors are designed for precision and reliability in industrial applications. With an extremely compact design, these sensors feature a robust stainless steel housing and a 360° visible LED status indicator, ensuring easy monitoring and durability. The inductive sensor offers a nominal sensing distance of 1.5mm and operates efficiently within a range of 0 to 1.21mm, making it ideal for detecting standard targets of 8x8mm FE360.
Engineered for versatility, the AH1/AP-1A sensors come with a PNP output type and NO output function, supporting a switching frequency of up to 5kHz. They operate on a voltage range of 10 to 30Vdc, with a no-load supply current of ? 10mA and a load current capacity of ? 200mA. The sensors are equipped with comprehensive protection features, including short-circuit, reverse polarity, and impulsive overvoltage protection, ensuring reliable performance in demanding environments.
The sensors are housed in a Ø6.5mm stainless steel body with a length of 45.5mm, and are equipped with a 2m PVC cable for easy installation. They are designed to withstand harsh conditions, with an operating temperature range of -25°C to +70°C and an IP67 protection rating, making them resistant to dust and water ingress. Additionally, the sensors are compliant with CE and UR approvals and meet EMC compatibility standards as per IEC 60947-5-2, ensuring they meet high safety and performance standards.
- Nominal sensing distance:
- 1,5mm
- Operanting distance:
- 0 1,21mm
- Standard target:
- 8x8mm FE360
- Correction Factor:
- copper: 0,06 / aluminium: 0,13 / brass: 0,24 / stainless steel: 0,56
- Thermal drift of Sr:
- < 10%
- Repeat Accuracy:
- < 5% (UB 24V Ta=23°C ±5°C)
- Hysteresis:
- 1 20%
- Description:
- Ø6,5 standard flush mount
- Functions:
- Proximity
- Output type:
- PNP
- Output Function:
- NO
- Switching frequency:
- 5kHz
- Operating Voltage:
- 10...30Vdc
- No-Load supply current:
- ? 10mA
- Load current:
- ? 200mA
- Leakage current:
- ? 10?A
- Output voltage drop:
- ? 1,8V @200mA
- Max ripple content:
- ? 10%
- LED indicators:
- Yellow LED output state
- Time delay before availability:
- ? 50ms
- Short-circuit protection:
- Yes
- Reverse Polarity Protection:
- Yes
- Impulsive Overvoltage Protection:
- Yes
- Protection against inductive loads:
- Yes
- Mounting:
- Shielded
- Weight:
- 35g
- Housing Material:
- AISI303 Stainless Steel
- Connections:
- 2m PVC Cable
- Active Head Material:
- PBT
- Material:
- AISI303 Stainless Steel
- Diameter/Dimension:
- Ø6,5
- Approvals:
- CE UR
- EMC compatibility:
- IEC 60947-5-2
- Shocks and vibrations:
- Vibration IEC 60068-2-6 / Shock IEC 60068-2-27
- Degree of protection:
- IP67
- Mechanical Protection:
- IP67
