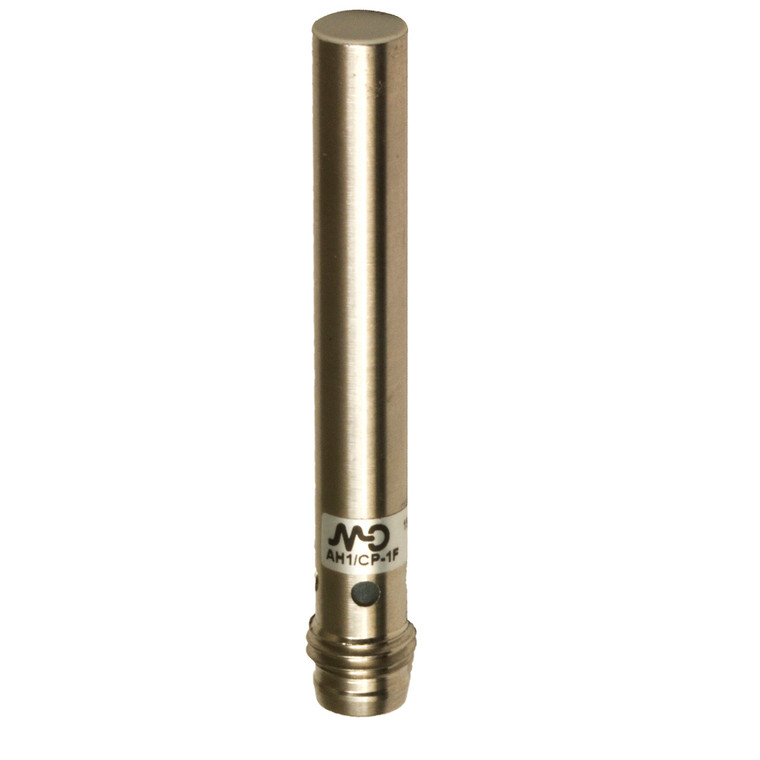

Datasensing AH1/AP-3FAN Sensors
Datasensing
$79.88
The Datasensing AH1/AP-3FAN Sensors are high-performance inductive sensors designed for precise proximity detection. Featuring a compact Ø6.5 mm design, these sensors are shielded and equipped with a NO/PNP output type, making them ideal for various industrial applications. With a nominal sensing distance of 2mm and an operating range of 0
1.62mm, they ensure accurate detection of standard targets measuring 8x8mm FE360. The sensors exhibit excellent thermal stability with a drift of less than 10% and repeat accuracy under 5% at 24V and 23°C ±5°C.
The AH1/AP-3FAN Sensors boast a high switching frequency of 5kHz and operate efficiently within a voltage range of 10...30Vdc. They are designed with robust protection features, including short-circuit, reverse polarity, and impulsive overvoltage protection, ensuring reliable performance in demanding environments. The sensors are housed in durable AISI303 stainless steel with an active head made of PBT, providing IP67 mechanical protection against dust and water ingress.
These sensors are equipped with a yellow LED indicator for output state visibility and are compatible with M8 plug connections. They are approved under CE UR II 3G Ex nA IIC T5 Gc II 3D Ex tc IIIB T90°C Dc standards, ensuring compliance with stringent safety and performance regulations. With a wide operating temperature range of -25°C to +70°C, the Datasensing AH1/AP-3FAN Sensors are engineered to withstand harsh industrial conditions, making them a reliable choice for your sensing needs.
- Nominal sensing distance:
- 2mm
- Operanting distance:
- 0 1,62mm
- Standard target:
- 8x8mm FE360
- Correction Factor:
- copper: 0,10 / aluminium: 0,17 / brass: 0,25 / stainless steel: 0,60
- Thermal drift of Sr:
- < 10%
- Repeat Accuracy:
- < 5% (UB 24V Ta=23°C ±5°C)
- Hysteresis:
- 1 20%
- Description:
- Ø6,5 standard flush mount
- Functions:
- Proximity
- Output type:
- PNP
- Output Function:
- NO
- Switching frequency:
- 5kHz
- Operating Voltage:
- 10...30Vdc
- No-Load supply current:
- ? 10mA
- Load current:
- ? 200mA
- Leakage current:
- ? 10?A
- Output voltage drop:
- ? 1,8V @200mA
- Max ripple content:
- ? 10%
- LED indicators:
- Yellow LED output state
- Time delay before availability:
- ? 50ms
- Short-circuit protection:
- Yes
- Reverse Polarity Protection:
- Yes
- Impulsive Overvoltage Protection:
- Yes
- Protection against inductive loads:
- Yes
- Mounting:
- Shielded
- Housing Material:
- AISI303 Stainless Steel
- Connections:
- M8 Plug
- Active Head Material:
- PBT
- Material:
- AISI303 Stainless Steel
- Diameter/Dimension:
- Ø6,5
- Approvals:
- CE UR II 3G Ex nA IIC T5 Gc II 3D Ex tc IIIB T90°C Dc
- EMC compatibility:
- IEC 60947-5-2
- Shocks and vibrations:
- Vibration IEC 60068-2-6 / Shock IEC 60068-2-27
- Dimensions:
- Ø6,5 / L = 50mm
- Operating Temperature:
- -25°C +70°C
- Mechanical Protection:
- IP67
