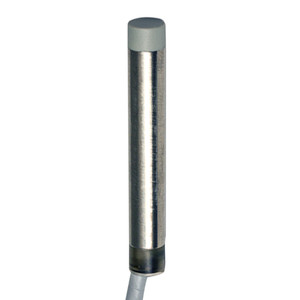

Datasensing AH1/AP-4A Sensors

The Datasensing AH1/AP-4A Sensors are designed for precision and reliability in industrial applications. With an extremely compact size of Ø6.5 mm, these inductive sensors are perfect for tight spaces. The robust metal housing, made from AISI303 stainless steel, ensures durability and resistance to harsh environments. The sensor features a 360° visible LED status indicator for easy monitoring and boasts an IP67 protection degree, making it suitable for challenging conditions. These sensors offer a nominal sensing distance of 4mm and an operating distance of 0 to 3.24mm, with a standard target size of 12x12mm FE360. They are equipped with a PNP output type and a NO output function, providing a switching frequency of 5kHz. The sensors operate within a voltage range of 10 to 30Vdc, with a no-load supply current of ? 10mA and a load current of ? 200mA. They are designed with complete protection against electrical damages, including short-circuit, reverse polarity, impulsive overvoltage, and inductive load protection. The AH1/AP-4A Sensors are available in both standard and long-distance models, with options for standard and short body housing. They are also compatible with ATEX models, category 3, upon request. The sensors are engineered to withstand thermal drift of Sr < 10% and repeat accuracy of < 5% at UB 24V Ta=23°C ±5°C. With a hysteresis range of 1 to 20%, these sensors ensure precise and consistent performance. The sensors come with a 2m PVC cable for easy installation and connectivity. They are approved with CE UR certifications and comply with EMC compatibility standards IEC 60947-5-2. Additionally, they are tested for shocks and vibrations according to Vibration IEC 60068-2-6 and Shock IEC 60068-2-27 standards. Operating efficiently in temperatures ranging from -25°C to +70°C, the Datasensing AH1/AP-4A Sensors are the ideal choice for reliable proximity sensing in demanding industrial environments.
