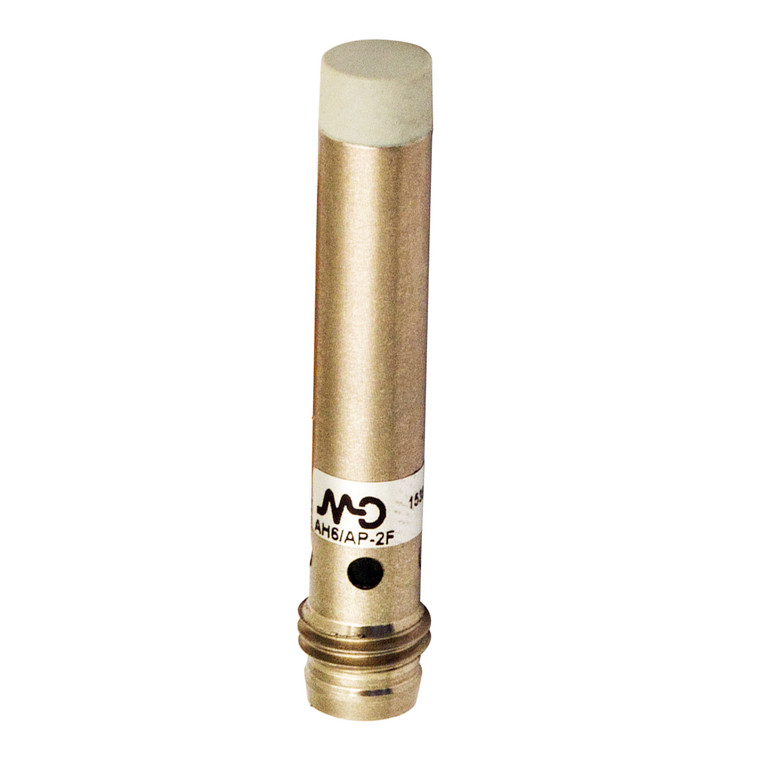

Datasensing AH6/AN-2F Sensors

The Datasensing AH6/AN-2F Sensors are designed for precision and reliability in compact spaces. With an extremely reduced dimension of 6,5 mm and a short unshielded body, these inductive sensors are perfect for applications where space is at a premium. The robust metal housing, crafted from AISI303 stainless steel, ensures durability and resistance to harsh environments, while the IP67 protection degree guarantees complete protection against dust and water ingress. Equipped with a 360 visible LED status indicator, these sensors provide clear operational feedback. The AH6/AN-2F model features a nominal sensing distance of 2.5mm and operates effectively within a range of 0 to 2.02mm. It is designed to handle a variety of materials with specific correction factors for copper, aluminum, brass, and stainless steel, ensuring versatile application across different surfaces. The sensor's output type is NPN with a normally open (NO) function, supporting a switching frequency of up to 5kHz. It operates within a voltage range of 10 to 30Vdc, with a no-load supply current of ? 10mA and a load current capacity of ? 200mA. The device is engineered with multiple protective features, including short-circuit, reverse polarity, and impulsive overvoltage protection, making it a reliable choice for demanding industrial environments. With a quick time delay before availability of ? 50ms and a yellow LED output state indicator, the AH6/AN-2F ensures efficient and immediate feedback. Its mechanical protection against shocks and vibrations, as per IEC standards, further enhances its robustness. The sensor is CE and UR approved, ensuring compliance with international safety and quality standards. Ideal for proximity sensing applications, this sensor is a dependable component for any industrial setup.
