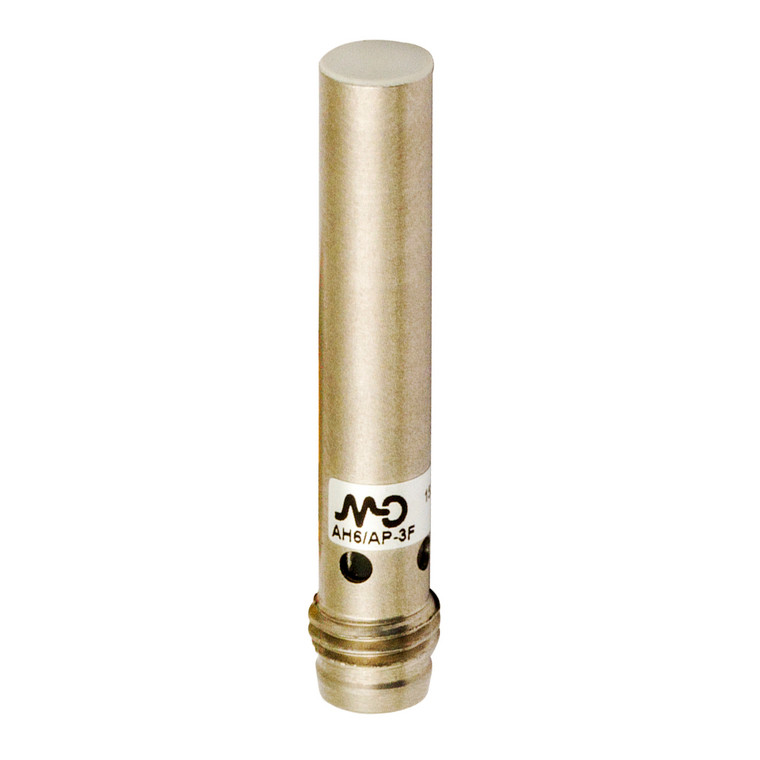

The Datasensing AH6/AP-3F Sensors are designed with extremely reduced dimensions, featuring a robust metal housing made from AISI303 stainless steel. These sensors are equipped with a 360° visible LED status indicator and offer IP67 protection, ensuring durability in various environments. They are available in both standard and long-distance models, with options for standard and short body housing. The sensors provide complete protection against electrical damages, including short-circuit, reverse polarity, and impulsive overvoltage protection.
With a nominal sensing distance of 2mm and an operating distance of 0 to 1.62mm, these sensors are ideal for proximity functions. They feature a PNP output type with a normally open (NO) output function and a switching frequency of 5kHz. The sensors operate within a voltage range of 10 to 30Vdc, with a no-load supply current of ? 10mA and a load current of ? 200mA. The output voltage drop is ? 1.8V at 200mA, and they have a maximum ripple content of ? 10%.
The sensors are designed for shielded mounting and have a compact size of Ø6.5mm in diameter and 40mm in length, weighing only 5g. They are equipped with an M8 plug for connections and have an active head made from PBT material. The operating temperature range is -25°C to +70°C, making them suitable for various industrial applications. The sensors are CE and UR approved, with EMC compatibility according to IEC 60947-5-2 standards, and are resistant to shocks and vibrations as per IEC 60068-2-6 and IEC 60068-2-27 standards.
- Nominal sensing distance:
- 2mm
- Operanting distance:
- 0 1,62mm
- Standard target:
- 8x8mm FE360
- Correction Factor:
- copper: 0,10 / aluminium: 0,17 / brass: 0,25 / stainless steel: 0,60
- Thermal drift of Sr:
- < 10%
- Repeat Accuracy:
- < 5% (UB 24V Ta=23°C ±5°C)
- Hysteresis:
- 1 20%
- Description:
- Ø6,5 short case flush mount
- Functions:
- Proximity
- Output type:
- PNP
- Output Function:
- NO
- Switching frequency:
- 5kHz
- Operating Voltage:
- 10...30Vdc
- No-Load supply current:
- ? 10mA
- Load current:
- ? 200mA
- Leakage current:
- ? 10?A
- Output voltage drop:
- ? 1,8V @200mA
- Max ripple content:
- ? 10%
- LED indicators:
- Yellow LED output state
- Time delay before availability:
- ? 50ms
- Short-circuit protection:
- Yes
- Reverse Polarity Protection:
- Yes
- Impulsive Overvoltage Protection:
- Yes
- Protection against inductive loads:
- Yes
- Mounting:
- Shielded
- Weight:
- 5g
- Housing Material:
- AISI303 Stainless Steel
- Connections:
- M8 Plug
- Active Head Material:
- PBT
- Material:
- AISI303 Stainless Steel
- Diameter/Dimension:
- Ø6,5
- Approvals:
- CE UR
- EMC compatibility:
- IEC 60947-5-2
- Shocks and vibrations:
- Vibration IEC 60068-2-6 / Shock IEC 60068-2-27
- Degree of protection:
- IP67
- Mechanical Protection:
- IP67
