Datasensing AH6/CP-4A Sensors
Datasensing
$54.75

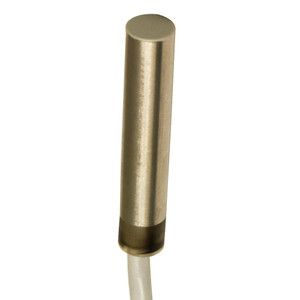

The Datasensing AH6/CP-4A Sensors are designed for precision and reliability in demanding environments. With an extremely compact design, these inductive sensors feature a 6.5 mm diameter and a short unshielded body, making them ideal for applications where space is limited. The robust metal housing is crafted from AISI303 stainless steel, ensuring durability and resistance to harsh conditions.
Equipped with a 360° visible LED status indicator, these sensors provide clear operational feedback. They offer a nominal sensing distance of 4mm and an operating distance of 0 to 3.24mm, with a standard target size of 12x12mm FE360. The sensors are engineered to handle a variety of materials with correction factors for copper, aluminum, brass, and stainless steel.
The AH6/CP-4A Sensors boast a high switching frequency of 5kHz and operate within a voltage range of 10 to 30Vdc. They are designed with comprehensive protection features, including short-circuit, reverse polarity, and impulsive overvoltage protection, ensuring reliable performance and longevity.
These sensors are IP67 rated, providing complete protection against dust and water ingress, and are suitable for use in temperatures ranging from -25°C to +70°C. The 2m PVC cable connection allows for flexible installation, while the PBT active head material enhances sensor performance.
Ideal for proximity sensing applications, the AH6/CP-4A Sensors are CE and UR approved, meeting stringent EMC compatibility standards. With their robust construction and advanced features, these sensors are a dependable choice for industrial automation and control systems.
- Nominal sensing distance:
- 4mm
- Operanting distance:
- 0 3,24mm
- Standard target:
- 12x12mm FE360
- Correction Factor:
- copper: 0,42 / aluminium: 0,47 / brass: 0,52 / stainless steel: 0,77
- Thermal drift of Sr:
- < 10%
- Repeat Accuracy:
- < 5% (UB 24V Ta=23°C ±5°C)
- Hysteresis:
- 1 20%
- Description:
- Ø6,5 short case no-flush mount
- Functions:
- Proximity
- Output type:
- PNP
- Output Function:
- NC
- Switching frequency:
- 5kHz
- Operating Voltage:
- 10...30Vdc
- No-Load supply current:
- ? 10mA
- Load current:
- ? 200mA
- Leakage current:
- ? 10?A
- Output voltage drop:
- ? 1,8V @200mA
- Max ripple content:
- ? 10%
- LED indicators:
- Yellow LED output state
- Time delay before availability:
- ? 50ms
- Short-circuit protection:
- Yes
- Reverse Polarity Protection:
- Yes
- Impulsive Overvoltage Protection:
- Yes
- Protection against inductive loads:
- Yes
- Mounting:
- Unshielded
- Weight:
- 35g
- Housing Material:
- AISI303 Stainless Steel
- Connections:
- 2m PVC Cable
- Active Head Material:
- PBT
- Material:
- AISI303 Stainless Steel
- Diameter/Dimension:
- Ø6,5
- Approvals:
- CE UR
- EMC compatibility:
- IEC 60947-5-2
- Shocks and vibrations:
- Vibration IEC 60068-2-6 / Shock IEC 60068-2-27
- Degree of protection:
- IP67
- Mechanical Protection:
- IP67
