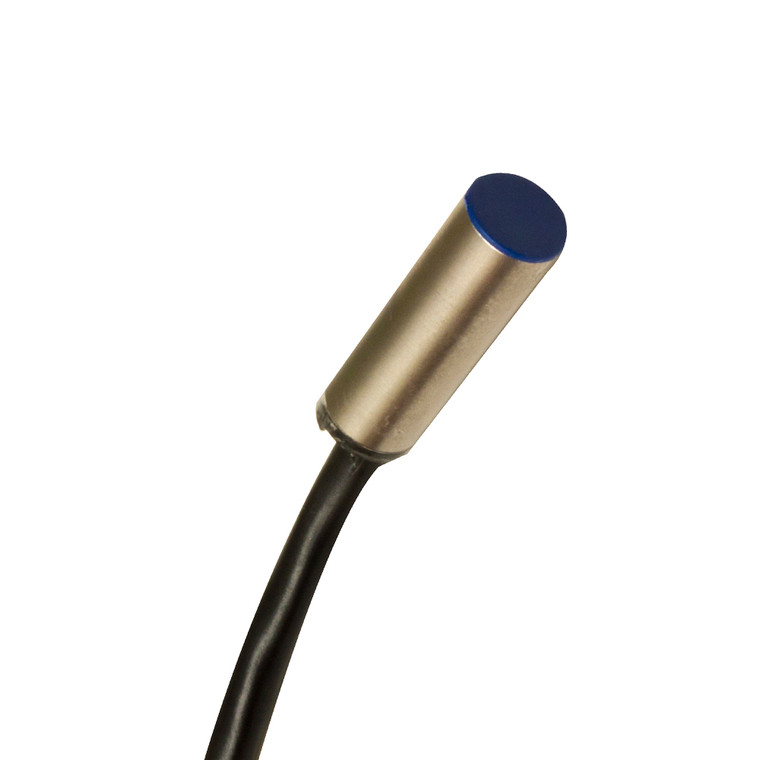

Datasensing AHS/AP-3A8F Sensors
Datasensing
$81.91
The Datasensing AHS/AP-3A8F Sensors are high-performance inductive sensors designed for precision and reliability. Featuring a compact Ø6,5 mm design, these sensors offer a nominal sensing distance of 2 mm and an operating range of 0 to 1.62 mm. Ideal for proximity detection, they are equipped with a PNP output and a normally open (NO) function. The sensors are constructed with durable AISI303 stainless steel housing and a PBT active head, ensuring robust performance in challenging environments. They come with a 2-meter PUR cable for easy installation and connectivity. With a standard target size of 8x8mm FE360, these sensors provide accurate detection with correction factors for various materials, including copper, aluminum, brass, and stainless steel. Designed for shielded mounting, they offer impulsive overvoltage protection and are rated IP67 for mechanical protection. The sensors can withstand shocks and vibrations as per IEC standards and operate efficiently in temperatures ranging from -25°C to +70°C. Perfect for applications requiring mini flush mount installation, these sensors deliver reliable performance in industrial settings.
- Nominal sensing distance:
- 2mm
- Operanting distance:
- 0 1,62mm
- Standard target:
- 8x8mm FE360
- Correction Factor:
- copper: 0,05 ± 10% / aluminium: 0,05 ± 10% / brass: 0,10 ± 10% / stainless steel: 0,50 ± 10%
- Description:
- mini flush mount
- Functions:
- Proximity
- Output type:
- PNP
- Output Function:
- NO
- Impulsive Overvoltage Protection:
- Yes
- Mounting:
- Shielded
- Housing Material:
- AISI303 Stainless Steel
- Connections:
- 2m PUR Cable
- Active Head Material:
- PBT
- Material:
- AISI303 Stainless Steel
- Diameter/Dimension:
- Ø6,5
- Shocks and vibrations:
- Vibration IEC 60068-2-6 / Shock IEC 60068-2-27
- Dimensions:
- Ø6,5 / L = 20,3mm
- Operating Temperature:
- -25°C +70°C
- Mechanical Protection:
- IP67
