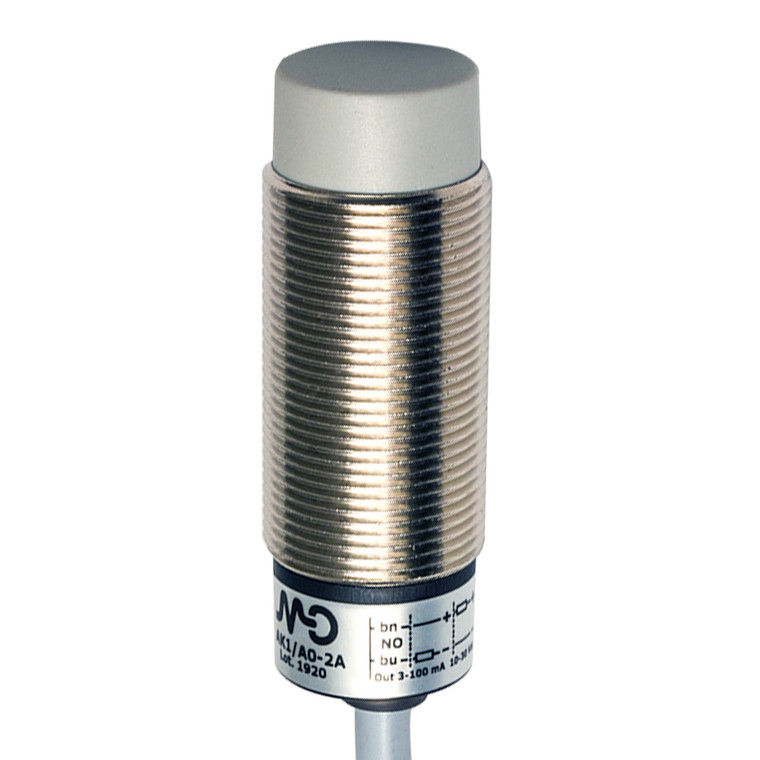

Datasensing AK1/AN-2A86 Sensors
Datasensing
$51.62
The Datasensing AK1/AN-2A86 Sensors are high-performance inductive sensors designed for precision and reliability. Featuring an M18 unshielded design, these sensors operate with a nominal sensing distance of 8mm and an operating range of 0 to 6.48mm. They are equipped with a NO/NPN output type and a 5m axial PVC cable for easy installation. The sensors are constructed with durable nickel-plated brass housing and an active head made of PBT, ensuring robust performance in various environments.
With a switching frequency of 600Hz and an operating voltage range of 10 to 30Vdc, these sensors are ideal for applications requiring fast and accurate proximity detection. They offer excellent protection features, including short-circuit, reverse polarity, and impulsive overvoltage protection, as well as protection against inductive loads. The sensors are designed to withstand harsh conditions, with an operating temperature range of -25°C to +70°C and mechanical protection rated at IP67.
Additional features include a yellow LED indicator for output state, a time delay before availability of ? 50ms, and a maximum ripple content of ? 10%. The sensors are CE and UR approved, ensuring compliance with international standards. They come with two M18x1 nuts for secure mounting and are compatible with standard targets of 24x24mm FE360. The sensors also exhibit a low thermal drift of Sr (< 10%) and repeat accuracy of < 5% at UB 24V Ta=23°C ±5°C, making them a reliable choice for industrial applications.
- Nominal sensing distance:
- 8mm
- Operanting distance:
- 0 6,48mm
- Standard target:
- 24x24mm FE360
- Correction Factor:
- copper: 0,45 / aluminium: 0,53 / brass: 0,56 / stainless steel: 0,77
- Thermal drift of Sr:
- < 10%
- Repeat Accuracy:
- < 5% (UB 24V Ta=23°C ±5°C)
- Hysteresis:
- 1 20%
- Description:
- M18 standard no-flush mount
- Functions:
- Proximity
- Output type:
- NPN
- Output Function:
- NO
- Switching frequency:
- 600Hz
- Operating Voltage:
- 10...30Vdc
- No-Load supply current:
- ? 20mA
- Load current:
- ? 400mA
- Leakage current:
- ? 10?A
- Output voltage drop:
- ? 1V @400mA
- Max ripple content:
- ? 10%
- LED indicators:
- Yellow LED output state
- Time delay before availability:
- ? 50ms
- Short-circuit protection:
- Yes
- Reverse Polarity Protection:
- Yes
- Impulsive Overvoltage Protection:
- Yes
- Protection against inductive loads:
- Yes
- Mounting:
- Unshielded
- Housing Material:
- Nickel-plated brass
- Connections:
- 5m PVC Cable
- Active Head Material:
- PBT
- Tightening torque:
- 25Nm
- Material:
- Nickel-plated brass
- Diameter/Dimension:
- M18
- Approvals:
- CE UR
- EMC compatibility:
- IEC 60947-5-2
- Shocks and vibrations:
- Vibration IEC 60068-2-6 / Shock IEC 60068-2-27
- Supplied Accessories:
- 2 nuts M18x1
- Dimensions:
- M18 x 1 / L = 50mm
- Operating Temperature:
- -25°C +70°C
- Mechanical Protection:
- IP67
- User Manuals:
- View
