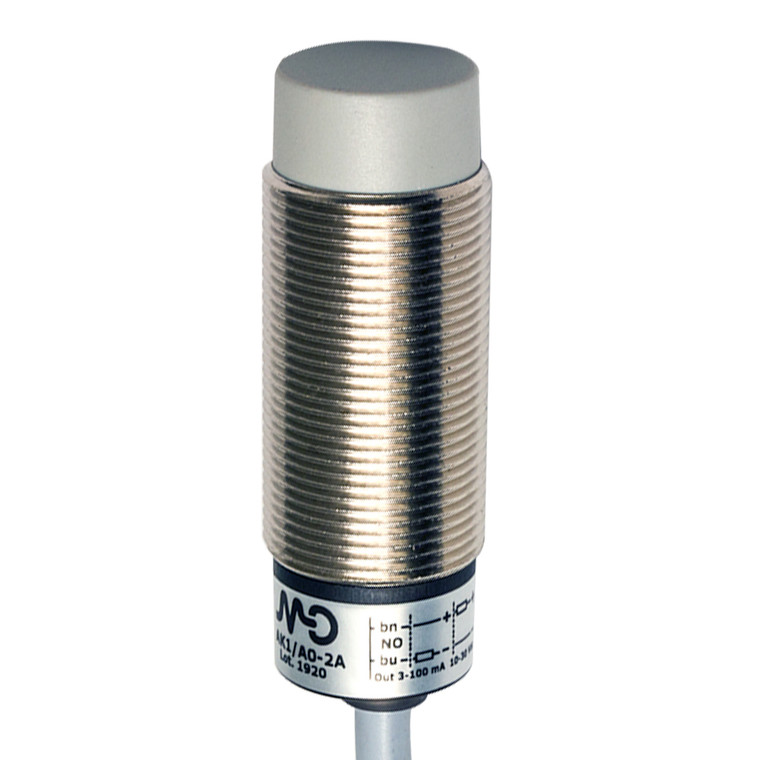

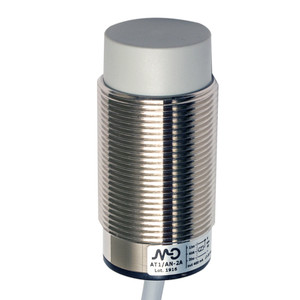

The Datasensing AK1/AN-2AAN Inductive Sensor is designed for precision and reliability in industrial applications. This M18 unshielded sensor features a nominal sensing distance of 8mm and operates effectively within a range of 0 to 6.48mm. It is equipped with a 2-meter PVC cable and offers a NO/NPN output type, making it suitable for proximity detection tasks. The sensor is constructed with a nickel-plated brass housing and a PBT active head, ensuring durability and resistance to harsh environments.
With a switching frequency of 600Hz and an operating voltage range of 10 to 30Vdc, this sensor is capable of handling load currents up to 400mA while maintaining a low leakage current of ? 10?A. It includes essential protections such as short-circuit, reverse polarity, and impulsive overvoltage protection, along with protection against inductive loads. The sensor's yellow LED indicator provides a clear output state, and it is ready for operation with a time delay of ? 50ms.
The AK1/AN-2AAN sensor is compliant with CE and UR approvals, and it meets the EMC compatibility standards of IEC 60947-5-2. It is designed to withstand shocks and vibrations as per IEC 60068-2-6 and IEC 60068-2-27 standards. The sensor's mechanical protection is rated at IP67, making it suitable for use in environments with dust and water exposure. It operates efficiently within a temperature range of -25°C to +70°C and includes two M18x1 nuts for secure mounting.
- Nominal sensing distance:
- 8mm
- Operanting distance:
- 0 6,48mm
- Standard target:
- 24x24mm FE360
- Correction Factor:
- copper: 0,45 / aluminium: 0,53 / brass: 0,56 / stainless steel: 0,77
- Thermal drift of Sr:
- < 10%
- Repeat Accuracy:
- < 5% (UB 24V Ta=23°C ±5°C)
- Hysteresis:
- 1 20%
- Description:
- M18 standard no-flush mount
- Functions:
- Proximity
- Output type:
- NPN
- Output Function:
- NO
- Switching frequency:
- 600Hz
- Operating Voltage:
- 10...30Vdc
- No-Load supply current:
- ? 20mA
- Load current:
- ? 400mA
- Leakage current:
- ? 10?A
- Output voltage drop:
- ? 1V @400mA
- Max ripple content:
- ? 10%
- LED indicators:
- Yellow LED output state
- Time delay before availability:
- ? 50ms
- Short-circuit protection:
- Yes
- Reverse Polarity Protection:
- Yes
- Impulsive Overvoltage Protection:
- Yes
- Protection against inductive loads:
- Yes
- Mounting:
- Unshielded
- Housing Material:
- Nickel-plated brass
- Connections:
- 2m PVC Cable
- Active Head Material:
- PBT
- Tightening torque:
- 25Nm
- Material:
- Nickel-plated brass
- Diameter/Dimension:
- M18
- Approvals:
- CE UR II 3G Ex nA IIC T6 Gc II 3D Ex tc IIIB T85°C Dc
- EMC compatibility:
- IEC 60947-5-2
- Shocks and vibrations:
- Vibration IEC 60068-2-6 / Shock IEC 60068-2-27
- Supplied Accessories:
- 2 nuts M18x1
- Dimensions:
- M18 x 1 / L = 50mm
- Operating Temperature:
- -25°C +70°C
- Mechanical Protection:
- IP67
