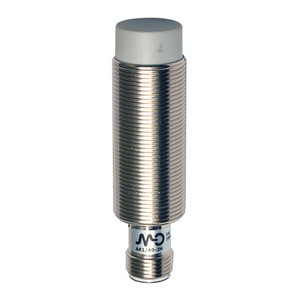

Datasensing AK1/AP-4HAN Sensors

The Datasensing AK1/AP-4HAN Sensors are high-performance inductive sensors designed for precise proximity detection. Featuring an M18 unshielded design, these sensors operate with a NO/PNP output and connect via an M12 plug. They are engineered to withstand challenging environments, boasting an IP67 mechanical protection rating and compliance with II 3G Ex nA IIC T5 and II 3D Ex tD A22 standards, making them suitable for use in hazardous areas. With a nominal sensing distance of 12mm and an operating range of 0 to 9.7mm, these sensors are optimized for detecting standard targets of 36x36mm FE360. They offer excellent repeat accuracy of less than 5% and a thermal drift of Sr under 10%, ensuring reliable performance. The sensors are equipped with a yellow LED indicator for output state visibility and feature short-circuit, reverse polarity, and impulsive overvoltage protection for enhanced durability. Constructed from nickel-plated brass with a PBT active head, the AK1/AP-4HAN sensors are robust and reliable. They support a wide operating voltage range of 10 to 30Vdc, with a no-load supply current of ? 20mA and a load current capacity of ? 400mA. The sensors are designed to handle a maximum ripple content of ? 10% and have a switching frequency of 300Hz, making them suitable for dynamic applications. Supplied with two M18x1 nuts for secure mounting, these sensors are easy to install and maintain. They are approved with CE and UR certifications and meet EMC compatibility standards as per IEC 60947-5-2. Withstanding temperatures from -25°C to +70°C, the Datasensing AK1/AP-4HAN Sensors are ideal for a variety of industrial applications requiring reliable and accurate proximity sensing.
