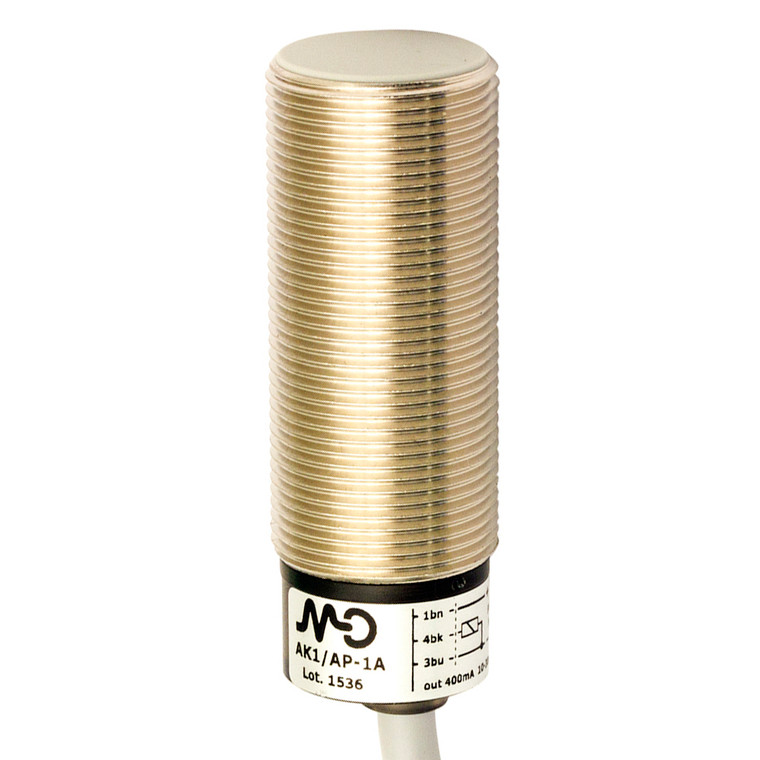

Datasensing AK1/CP-3A Sensors
Datasensing
$55.51
The Datasensing AK1/CP-3A Sensors are high-performance inductive sensors designed for a variety of applications. With a nominal sensing distance of 8mm and an operating distance of 0 to 6.48mm, these sensors are ideal for precise proximity detection. They feature a standard target size of 24x24mm FE360 and offer correction factors for different materials, including copper, aluminum, brass, and stainless steel. The sensors are equipped with a PNP output type and an NC output function, ensuring reliable performance with a switching frequency of 300Hz.
Operating within a voltage range of 10 to 30Vdc, the sensors have a no-load supply current of ? 20mA and can handle a load current of up to 400mA. They are designed with short-circuit, reverse polarity, and impulsive overvoltage protection, making them robust and durable. The sensors are housed in nickel-plated brass with an M18 x 1 dimension and a length of 50mm, providing IP67 mechanical protection against dust and water.
The sensors come with a 2m PVC cable connection and feature a yellow LED indicator for output state. They are capable of withstanding shocks and vibrations as per IEC standards and are approved with CE and UR certifications. With a thermal drift of Sr less than 10% and repeat accuracy of less than 5%, these sensors ensure consistent performance in temperatures ranging from -25°C to +70°C. Supplied with two M18x1 nuts, the Datasensing AK1/CP-3A Sensors are a reliable choice for industrial sensing needs.
- Nominal sensing distance:
- 8mm
- Operanting distance:
- 0 6,48mm
- Standard target:
- 24x24mm FE360
- Correction Factor:
- copper: 0,40 / aluminium: 0,45 / brass: 0,50 / stainless steel: 0,75
- Thermal drift of Sr:
- < 10%
- Repeat Accuracy:
- < 5% (UB 24V Ta=23°C ±5°C)
- Hysteresis:
- 1 20%
- Description:
- M18 standard flush mount
- Functions:
- Proximity
- Output type:
- PNP
- Output Function:
- NC
- Switching frequency:
- 300Hz
- Operating Voltage:
- 10...30Vdc
- No-Load supply current:
- ? 20mA
- Load current:
- ? 400mA
- Leakage current:
- ? 10?A
- Output voltage drop:
- ? 1V @400mA
- Max ripple content:
- ? 10%
- LED indicators:
- Yellow LED output state
- Time delay before availability:
- ? 50ms
- Short-circuit protection:
- Yes
- Reverse Polarity Protection:
- Yes
- Impulsive Overvoltage Protection:
- Yes
- Protection against inductive loads:
- Yes
- Mounting:
- Shielded
- Weight:
- 130g
- Housing Material:
- Nickel-plated brass
- Connections:
- 2m PVC Cable
- Active Head Material:
- PBT
- Tightening torque:
- 25Nm
- Material:
- Nickel-plated brass
- Diameter/Dimension:
- M18
- Approvals:
- CE UR
- EMC compatibility:
- IEC 60947-5-2
- Shocks and vibrations:
- Vibration IEC 60068-2-6 / Shock IEC 60068-2-27
- Degree of protection:
- IP67
- Supplied Accessories:
- 2 nuts M18x1
- Mechanical Protection:
- IP67
- 2D Files:
- View
- 3D Files:
- View
- CAD Files:
- View
- EU Declarations:
- View
- Catalog:
- View
- User Manuals:
- View
