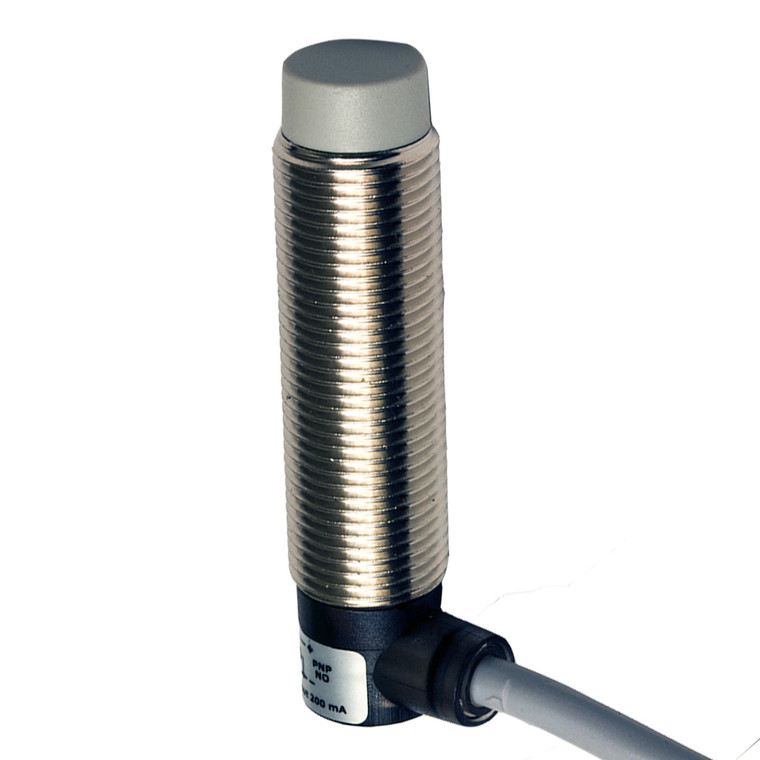

Datasensing AM1/AN-2C Sensors
Datasensing
$39.36
The Datasensing AM1/AN-2C Sensors are designed for precision and reliability in industrial applications. These inductive sensors feature a nominal sensing distance of 4mm and an operating distance of 0 to 3.2mm, making them ideal for detecting standard targets of 12x12mm FE360. With a robust nickel-plated brass housing and PBT active head material, these sensors ensure durability and longevity. They offer a wide range of models, including standard, short body, and long distance, with options for cable, M12, and M8 plug cable exits. The sensors are equipped with NPN output type and NO output function, supporting a switching frequency of 2kHz and operating voltage of 10 to 30Vdc.
The AM1/AN-2C Sensors are designed with safety and efficiency in mind, featuring short-circuit, reverse polarity, and impulsive overvoltage protection. They also include a yellow LED indicator for output state and have a time delay before availability of ? 50ms. With a degree of protection rated at IP67, these sensors are suitable for harsh environments, operating within a temperature range of -25°C to +70°C. The sensors come with 2m PVC cable connections and are supplied with two M12x1 nuts for easy installation. Additionally, ATEX models, category 3, are available upon request for specialized applications.
- Nominal sensing distance:
- 4mm
- Operanting distance:
- 0 3,2mm
- Standard target:
- 12x12mm FE360
- Correction Factor:
- copper: 0,41 / aluminium: 0,47 / brass: 0,56 / stainless steel: 1,15
- Thermal drift of Sr:
- < 10%
- Repeat Accuracy:
- < 5% (UB 24V Ta=23°C ±5°C)
- Hysteresis:
- 1 20%
- Description:
- M12 standard no-flush mount
- Functions:
- Proximity
- Output type:
- NPN
- Output Function:
- NO
- Switching frequency:
- 2kHz
- Operating Voltage:
- 10...30Vdc
- No-Load supply current:
- ? 10mA
- Load current:
- ? 200mA
- Leakage current:
- ? 10?A
- Output voltage drop:
- ? 1,8V @200mA
- Max ripple content:
- ? 10%
- LED indicators:
- Yellow LED output state
- Time delay before availability:
- ? 50ms
- Short-circuit protection:
- Yes
- Reverse Polarity Protection:
- Yes
- Impulsive Overvoltage Protection:
- Yes
- Protection against inductive loads:
- Yes
- Mounting:
- Unshielded
- Weight:
- 70g
- Housing Material:
- Nickel-plated brass
- Connections:
- 2m PVC Cable - 90° Output
- Active Head Material:
- PBT
- Tightening torque:
- 10Nm
- Material:
- Nickel-plated brass
- Diameter/Dimension:
- M12
- Approvals:
- CE UR
- EMC compatibility:
- IEC 60947-5-2
- Shocks and vibrations:
- Vibration IEC 60068-2-6 / Shock IEC 60068-2-27
- Degree of protection:
- IP67
- Supplied Accessories:
- 2 nuts M12x1
- Mechanical Protection:
- IP67
