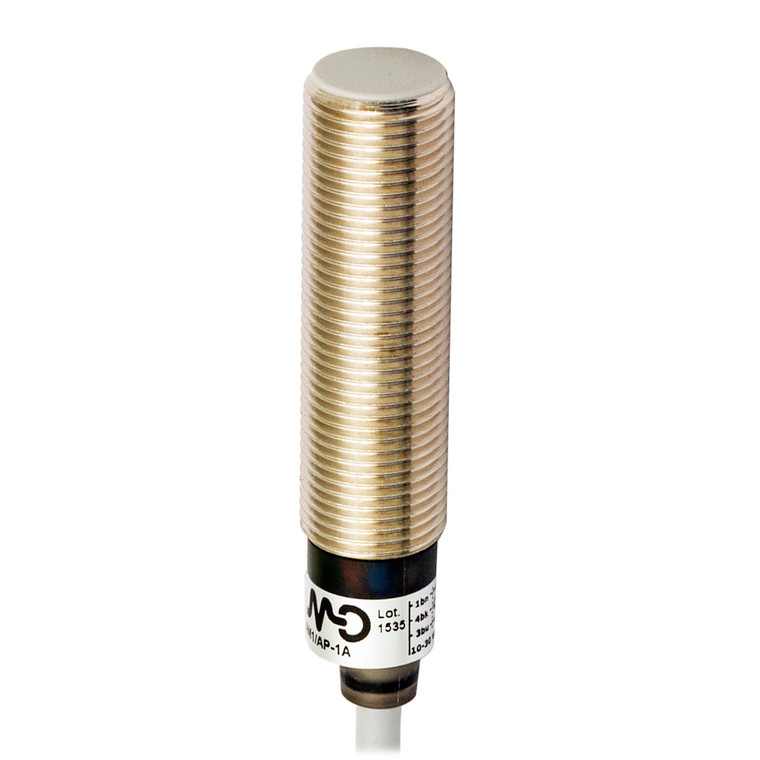

Datasensing AM1/AP-1A84 Sensors

The Datasensing AM1/AP-1A84 Sensors are high-performance inductive sensors designed for precision and reliability. Featuring a shielded M12 design, these sensors offer a nominal sensing distance of 2mm and an operating distance of 0 to 1.62mm, making them ideal for detecting standard targets of 12x12mm FE360. With a robust nickel-plated brass housing and a 3m PVC cable connection, they ensure durability and ease of installation. These sensors operate with a PNP output type and a normally open (NO) output function, providing a switching frequency of 2kHz. They are equipped with a yellow LED indicator for output state visibility and offer comprehensive protection features, including short-circuit, reverse polarity, impulsive overvoltage, and protection against inductive loads. The AM1/AP-1A84 Sensors are designed to withstand harsh environments, with an operating temperature range of -25°C to +70°C and mechanical protection rated at IP67. They are compliant with CE and UR approvals and meet EMC compatibility standards IEC 60947-5-2. Additionally, they come with two M12x1 nuts for secure mounting and are capable of handling shocks and vibrations as per IEC standards. With a low no-load supply current of ? 10mA and a load current capacity of ? 200mA, these sensors are energy-efficient and reliable. The output voltage drop is minimal at ? 1.8V @200mA, ensuring efficient performance. The AM1/AP-1A84 Sensors are an excellent choice for applications requiring precise proximity detection and robust performance in challenging conditions.
