Datasensing AM1/AP-1C Sensors
Datasensing
$39.36

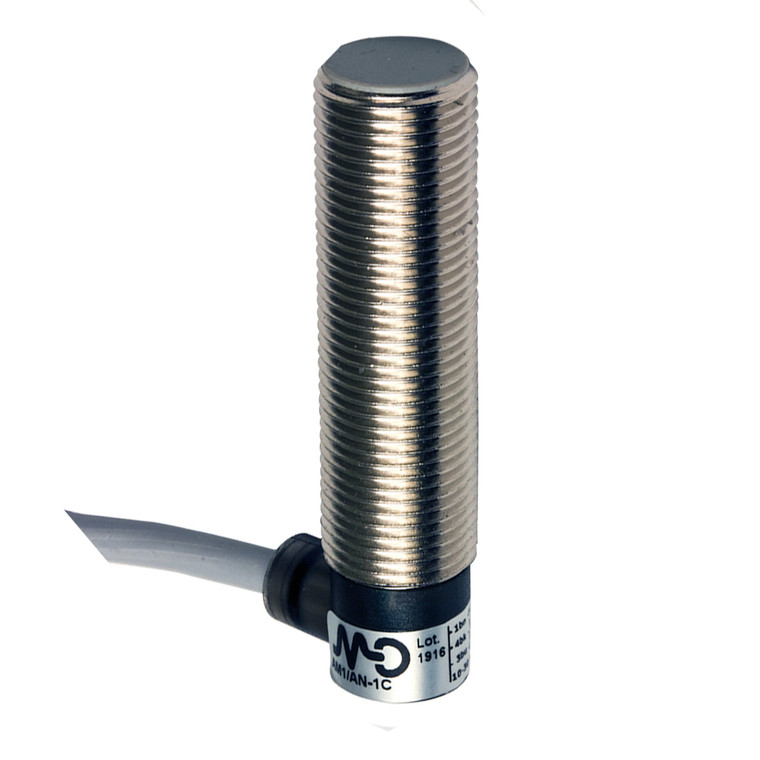

The Datasensing AM1/AP-1C Sensors are high-performance inductive sensors designed for precision and reliability in various industrial applications. Featuring a nominal sensing distance of 2mm and an operating distance of 0 to 1.62mm, these sensors are ideal for detecting standard targets of 12x12mm FE360. With a robust nickel-plated brass housing and a PBT active head, they ensure durability and longevity even in challenging environments.
These sensors offer a wide range of models, including standard, short body, and long-distance options, with output configurations available in cable, M12, and M8 plug cable exits. The AM1/AP-1C models are equipped with 2 or 3 wire connections and are available in ATEX category 3 upon request, making them suitable for hazardous locations.
The sensors operate with a PNP output type and a normally open (NO) output function, supporting a switching frequency of up to 2kHz. They are designed to operate within a voltage range of 10 to 30Vdc, with a no-load supply current of ? 10mA and a load current of ? 200mA. The sensors feature a low output voltage drop of ? 1.8V at 200mA and a maximum ripple content of ? 10%.
For enhanced safety and reliability, the AM1/AP-1C sensors include short-circuit protection, reverse polarity protection, impulsive overvoltage protection, and protection against inductive loads. The yellow LED indicator provides a clear output state, and the sensors are ready for operation with a time delay of ? 50ms.
With a compact M12 x 1 design and a length of 49.8mm, these sensors are easy to install and mount using the supplied M12x1 nuts. They are capable of withstanding operating temperatures from -25°C to +70°C and offer mechanical protection with an IP67 rating. The sensors are CE and UR approved, ensuring compliance with international standards, and are compatible with IEC 60947-5-2 for electromagnetic compatibility. Additionally, they are tested for vibration and shock resistance according to IEC 60068-2-6 and IEC 60068-2-27 standards, respectively.
- Nominal sensing distance:
- 2mm
- Operanting distance:
- 0 1,62mm
- Standard target:
- 12x12mm FE360
- Correction Factor:
- copper: 0,22 / aluminium: 0,31 / brass: 0,41 / stainless steel: 0,77
- Thermal drift of Sr:
- < 10%
- Repeat Accuracy:
- < 5% (UB 24V Ta=23°C ±5°C)
- Hysteresis:
- 1 20%
- Description:
- M12 standard flush mount
- Functions:
- Proximity
- Output type:
- PNP
- Output Function:
- NO
- Switching frequency:
- 2kHz
- Operating Voltage:
- 10...30Vdc
- No-Load supply current:
- ? 10mA
- Load current:
- ? 200mA
- Leakage current:
- ? 10?A
- Output voltage drop:
- ? 1,8V @200mA
- Max ripple content:
- ? 10%
- LED indicators:
- Yellow LED output state
- Time delay before availability:
- ? 50ms
- Short-circuit protection:
- Yes
- Reverse Polarity Protection:
- Yes
- Impulsive Overvoltage Protection:
- Yes
- Protection against inductive loads:
- Yes
- Mounting:
- Shielded
- Weight:
- 70g
- Housing Material:
- Nickel-plated brass
- Connections:
- 2m PVC Cable - 90° Output
- Active Head Material:
- PBT
- Tightening torque:
- 10Nm
- Material:
- Nickel-plated brass
- Diameter/Dimension:
- M12
- Approvals:
- CE UR
- EMC compatibility:
- IEC 60947-5-2
- Shocks and vibrations:
- Vibration IEC 60068-2-6 / Shock IEC 60068-2-27
- Degree of protection:
- IP67
- Supplied Accessories:
- 2 nuts M12x1
- Mechanical Protection:
- IP67
