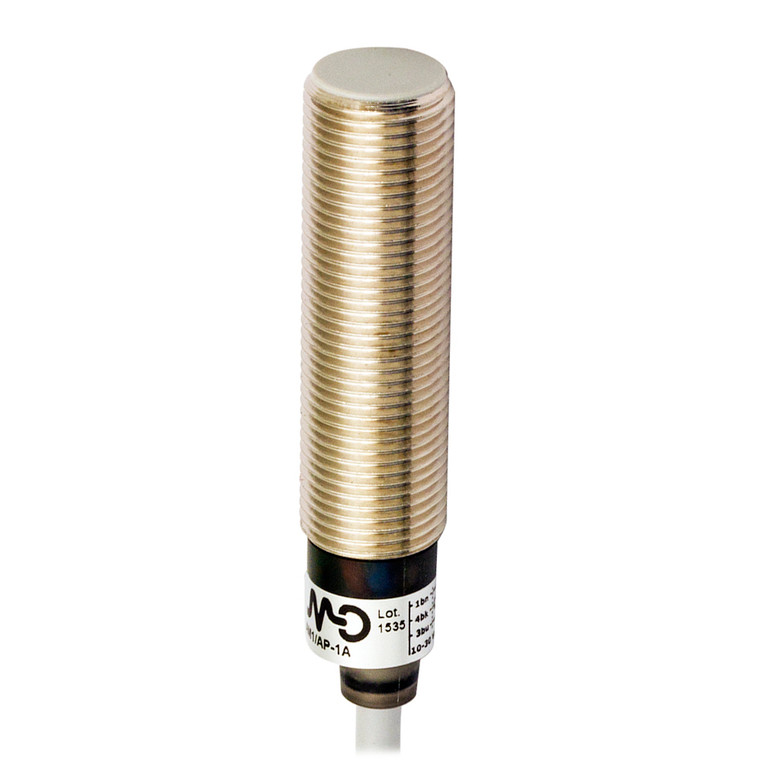

Datasensing AM1/AP-3A Sensors

The Datasensing AM1/AP-3A Sensors are high-performance inductive sensors designed for precision and reliability. With a nominal sensing distance of 4mm and an operating range of 0 to 3.2mm, these sensors are ideal for detecting standard targets of 12x12mm FE360. They feature a robust nickel-plated brass housing and an active head made of PBT, ensuring durability in various industrial environments. These sensors offer a wide range of models, including standard, short body, and long-distance options, with output configurations available in cable, M12, and M8 plug cable exits. They support both 2 and 3 wire models, with ATEX category 3 models available upon request for hazardous environments. The AM1/AP-3A Sensors are equipped with PNP output type and NO output function, providing a switching frequency of 2kHz. They operate efficiently within a voltage range of 10 to 30Vdc, with a no-load supply current of ? 10mA and a load current of ? 200mA. The sensors are designed with short-circuit, reverse polarity, and impulsive overvoltage protection, ensuring reliable performance and longevity. Featuring a yellow LED indicator for output state, these sensors have a time delay before availability of ? 50ms and a maximum ripple content of ? 10%. They are shielded for mounting, with a tightening torque of 10Nm, and are capable of withstanding operating temperatures from -25°C to +70°C. The sensors are CE and UR approved, with EMC compatibility according to IEC 60947-5-2 standards, and offer IP67 mechanical protection against dust and water ingress. Supplied with two M12x1 nuts, the Datasensing AM1/AP-3A Sensors are designed to meet the demands of industrial applications, providing reliable proximity detection with high repeat accuracy and minimal thermal drift.
