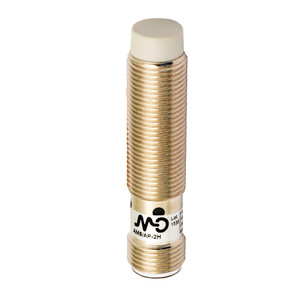

Datasensing AM1/AP-4HAN Sensors
Datasensing
$65.90
The Datasensing AM1/AP-4HAN Sensors are high-performance inductive sensors designed for reliable proximity detection. Featuring an M12 unshielded design with a NO/PNP connection, these sensors are ATEX certified for use in potentially explosive atmospheres (II 3G Ex nA IIC T6 Gc II 3D Ex tc IIIB T85°C Dc). With a nominal sensing distance of 8mm and an operating range of 0 to 6.48mm, they are ideal for various industrial applications. The sensors are constructed with a nickel-plated brass housing and a PBT active head, ensuring durability and resistance to harsh environments. They offer a high switching frequency of 2kHz and operate within a voltage range of 10 to 30Vdc. Additional features include short-circuit, reverse polarity, and impulsive overvoltage protection, as well as a yellow LED indicator for output state. The sensors are compatible with standard M12 plugs and come with two M12x1 nuts for easy installation. With an IP67 mechanical protection rating, they are built to withstand shocks and vibrations, making them suitable for demanding conditions.
- Nominal sensing distance:
- 8mm
- Operanting distance:
- 0 6,48mm
- Standard target:
- 24x24mm FE360
- Correction Factor:
- copper: 0,41 / aluminium: 0,46 / brass: 0,52 / stainless steel: 0,71
- Thermal drift of Sr:
- < 10%
- Repeat Accuracy:
- < 5% (UB 24V Ta=23°C ±5°C)
- Hysteresis:
- 1 20%
- Description:
- M12 standard no-flush mount
- Functions:
- Proximity
- Output type:
- PNP
- Output Function:
- NO
- Switching frequency:
- 2kHz
- Operating Voltage:
- 10...30Vdc
- No-Load supply current:
- ? 10mA
- Load current:
- ? 200mA
- Leakage current:
- ? 10?A
- Output voltage drop:
- ? 1,8V @200mA
- Max ripple content:
- ? 10%
- LED indicators:
- Yellow LED output state
- Time delay before availability:
- ? 50ms
- Short-circuit protection:
- Yes
- Reverse Polarity Protection:
- Yes
- Impulsive Overvoltage Protection:
- Yes
- Protection against inductive loads:
- Yes
- Mounting:
- Unshielded
- Housing Material:
- Nickel-plated brass
- Connections:
- M12 Plug
- Active Head Material:
- PBT
- Tightening torque:
- 10Nm
- Material:
- Nickel-plated brass
- Diameter/Dimension:
- M12
- Approvals:
- CE UR II 3G Ex nA IIC T6 Gc II 3D Ex tc IIIB T85°C Dc
- EMC compatibility:
- IEC 60947-5-2
- Shocks and vibrations:
- Vibration IEC 60068-2-6 / Shock IEC 60068-2-27
- Supplied Accessories:
- 2 nuts M12x1
- Dimensions:
- M12 x 1 / L= 64,8mm
- Operating Temperature:
- -25°C +70°C
- Mechanical Protection:
- IP67
