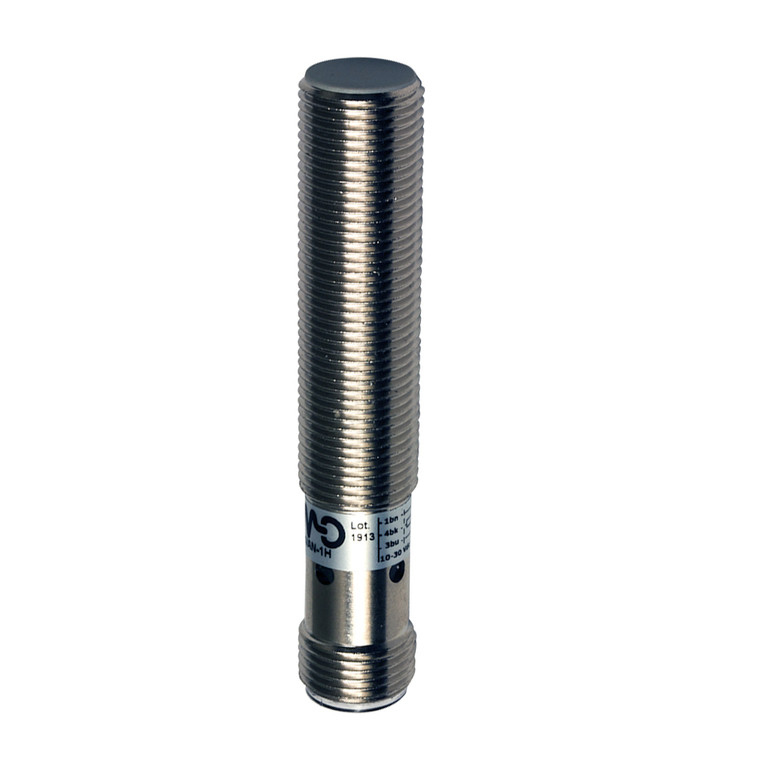

The Datasensing AM1/CN-1H Sensors are high-performance inductive sensors designed for precision and reliability in various industrial applications. Featuring a compact M12 shielded design, these sensors offer a nominal sensing distance of 2mm and an operating distance of 0 to 1.62mm, making them ideal for detecting standard targets of 12x12mm FE360. With a robust nickel-plated brass housing and PBT active head material, they ensure durability and longevity even in harsh environments.
These sensors are equipped with an NPN output type and NC output function, providing a switching frequency of 2kHz and operating voltage range of 10 to 30Vdc. They are designed with advanced protection features, including short-circuit, reverse polarity, impulsive overvoltage, and protection against inductive loads, ensuring reliable performance and safety.
The AM1/CN-1H Sensors are easy to install with M12 plug connections and come with supplied accessories, including two M12x1 nuts. They are CE and UR approved, with EMC compatibility according to IEC 60947-5-2 standards, and offer mechanical protection with an IP67 degree of protection. Operating efficiently in temperatures ranging from -25°C to +70°C, these sensors are perfect for a wide range of industrial applications requiring precise proximity detection.
- Nominal sensing distance:
- 2mm
- Operanting distance:
- 0 1,62mm
- Standard target:
- 12x12mm FE360
- Correction Factor:
- copper: 0,22 / aluminium: 0,31 / brass: 0,41 / stainless steel: 0,77
- Thermal drift of Sr:
- < 10%
- Repeat Accuracy:
- < 5% (UB 24V Ta=23°C ±5°C)
- Hysteresis:
- 1 20%
- Description:
- M12 standard flush mount
- Functions:
- Proximity
- Output type:
- NPN
- Output Function:
- NC
- Switching frequency:
- 2kHz
- Operating Voltage:
- 10...30Vdc
- No-Load supply current:
- ? 10mA
- Load current:
- ? 200mA
- Leakage current:
- ? 10?A
- Output voltage drop:
- ? 1,8V @200mA
- Max ripple content:
- ? 10%
- LED indicators:
- Yellow LED output state
- Time delay before availability:
- ? 50ms
- Short-circuit protection:
- Yes
- Reverse Polarity Protection:
- Yes
- Impulsive Overvoltage Protection:
- Yes
- Protection against inductive loads:
- Yes
- Mounting:
- Shielded
- Weight:
- 30g
- Housing Material:
- Nickel-plated brass
- Connections:
- M12 Plug
- Active Head Material:
- PBT
- Tightening torque:
- 10Nm
- Material:
- Nickel-plated brass
- Diameter/Dimension:
- M12
- Approvals:
- CE UR
- EMC compatibility:
- IEC 60947-5-2
- Shocks and vibrations:
- Vibration IEC 60068-2-6 / Shock IEC 60068-2-27
- Degree of protection:
- IP67
- Supplied Accessories:
- 2 nuts M12x1
- Mechanical Protection:
- IP67
