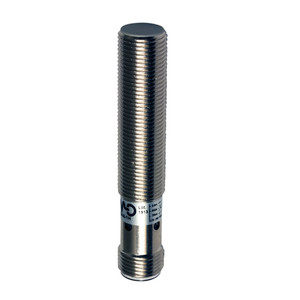

Datasensing AM1/CN-3A Sensors
Datasensing
$45.41
The Datasensing AM1/CN-3A Sensors are designed for precision and reliability in industrial applications. These inductive sensors feature a standard M12 flush mount, offering a nominal sensing distance of 4mm and an operating distance of 0 to 3.2mm. With a robust nickel-plated brass housing and PBT active head material, they ensure durability and longevity. The sensors are equipped with a yellow LED indicator for output state, and provide NPN output with NC function, supporting a switching frequency of 2kHz. They operate efficiently within a voltage range of 10 to 30Vdc, with a no-load supply current of ? 10mA and a load current of ? 200mA. Designed to withstand harsh environments, they offer IP67 protection, short-circuit, reverse polarity, and impulsive overvoltage protection. The sensors are compatible with a wide range of materials, with correction factors for copper, aluminum, brass, and stainless steel. They are CE and UR approved, ensuring compliance with international standards. Ideal for applications requiring high repeat accuracy and minimal thermal drift, these sensors are a reliable choice for proximity detection in various industrial settings. Supplied with two M12x1 nuts for easy installation, they are ready to perform in temperatures ranging from -25°C to +70°C.
- Nominal sensing distance:
- 4mm
- Operanting distance:
- 0 3,2mm
- Standard target:
- 12x12mm FE360
- Correction Factor:
- copper: 0,33 / aluminium: 0,4 / brass: 0,5 / stainless steel: 1,05
- Thermal drift of Sr:
- < 10%
- Repeat Accuracy:
- < 5% (UB 24V Ta=23°C ±5°C)
- Hysteresis:
- 1 20%
- Description:
- M12 standard flush mount
- Functions:
- Proximity
- Output type:
- NPN
- Output Function:
- NC
- Switching frequency:
- 2kHz
- Operating Voltage:
- 10...30Vdc
- No-Load supply current:
- ? 10mA
- Load current:
- ? 200mA
- Leakage current:
- ? 10?A
- Output voltage drop:
- ? 1,8V @200mA
- Max ripple content:
- ? 10%
- LED indicators:
- Yellow LED output state
- Time delay before availability:
- ? 50ms
- Short-circuit protection:
- Yes
- Reverse Polarity Protection:
- Yes
- Impulsive Overvoltage Protection:
- Yes
- Protection against inductive loads:
- Yes
- Mounting:
- Shielded
- Weight:
- 70g
- Housing Material:
- Nickel-plated brass
- Connections:
- 2m PVC Cable
- Active Head Material:
- PBT
- Tightening torque:
- 10Nm
- Material:
- Nickel-plated brass
- Diameter/Dimension:
- M12
- Approvals:
- CE UR
- EMC compatibility:
- IEC 60947-5-2
- Shocks and vibrations:
- Vibration IEC 60068-2-6 / Shock IEC 60068-2-27
- Degree of protection:
- IP67
- Supplied Accessories:
- 2 nuts M12x1
- Mechanical Protection:
- IP67
