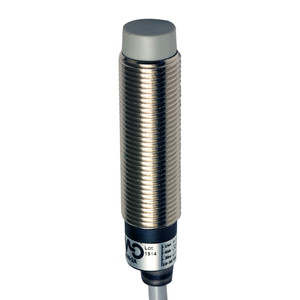

The Datasensing AM1/CN-4A2Q Inductive Sensor is designed for precision and reliability in industrial applications. Featuring an M12 unshielded design, this sensor operates with an NC/NPN output type and is equipped with a 2-meter axial cable. It supports a maximum current of 400mA and operates within a voltage range of 10 to 30Vdc. The sensor boasts a nominal sensing distance of 8mm and an operating distance of 0 to 6.48mm, making it ideal for detecting standard targets of 24x24mm FE360.
Constructed with a nickel-plated brass housing and a PBT active head, the sensor ensures durability and resistance to harsh environments, with an IP67 mechanical protection rating. It is equipped with a yellow LED indicator for output state visibility and offers robust protection features, including short-circuit, reverse polarity, impulsive overvoltage, and protection against inductive loads.
The sensor's performance is further enhanced by its high switching frequency of 2kHz, low no-load supply current of ? 10mA, and minimal output voltage drop of ? 1.8V at 200mA. It is designed to withstand shocks and vibrations as per IEC standards and is approved with CE and UR certifications. The package includes two M12x1 nuts for easy mounting, and the sensor is compatible with EMC standards IEC 60947-5-2. Operating efficiently in temperatures ranging from -25°C to +70°C, this sensor is a reliable choice for various proximity sensing applications.
- Nominal sensing distance:
- 8mm
- Operanting distance:
- 0 6,48mm
- Standard target:
- 24x24mm FE360
- Correction Factor:
- copper: 0,41 / aluminium: 0,46 / brass: 0,52 / stainless steel: 0,71
- Thermal drift of Sr:
- < 10%
- Repeat Accuracy:
- < 5% (UB 24V Ta=23°C ±5°C)
- Hysteresis:
- 1 20%
- Description:
- M12 standard no-flush mount
- Functions:
- Proximity
- Output type:
- NPN
- Output Function:
- NC
- Switching frequency:
- 2kHz
- Operating Voltage:
- 10...30Vdc
- No-Load supply current:
- ? 10mA
- Load current:
- ? 200mA
- Leakage current:
- ? 10?A
- Output voltage drop:
- ? 1,8V @200mA
- Max ripple content:
- ? 10%
- LED indicators:
- Yellow LED output state
- Time delay before availability:
- ? 50ms
- Short-circuit protection:
- Yes
- Reverse Polarity Protection:
- Yes
- Impulsive Overvoltage Protection:
- Yes
- Protection against inductive loads:
- Yes
- Mounting:
- Unshielded
- Housing Material:
- Nickel-plated brass
- Connections:
- 2m PVC Cable
- Active Head Material:
- PBT
- Tightening torque:
- 10Nm
- Material:
- Nickel-plated brass
- Diameter/Dimension:
- M12
- Approvals:
- CE UR
- EMC compatibility:
- IEC 60947-5-2
- Shocks and vibrations:
- Vibration IEC 60068-2-6 / Shock IEC 60068-2-27
- Supplied Accessories:
- 2 nuts M12x1
- Dimensions:
- M12 x 1 / L= 49,8mm
- Operating Temperature:
- -25°C +70°C
- Mechanical Protection:
- IP67
