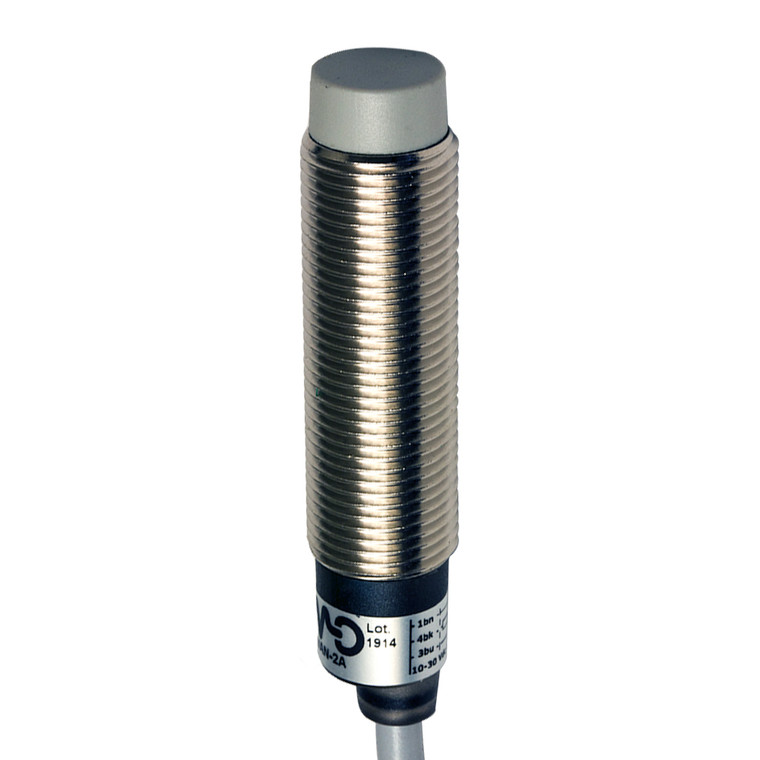

Datasensing AM1/CP-2A Sensors
Datasensing
$37.02
The Datasensing AM1/CP-2A Sensors are designed for precision and reliability in industrial applications. These inductive sensors feature a nominal sensing distance of 4mm and an operating range of 0 to 3.2mm, making them ideal for detecting standard targets of 12x12mm FE360. With a robust nickel-plated brass housing and PBT active head material, these sensors ensure durability and longevity. They offer a PNP output type with a normally closed (NC) output function, and a switching frequency of 2kHz, suitable for high-speed operations.
The sensors are equipped with a yellow LED indicator for output state, and provide comprehensive protection features including short-circuit, reverse polarity, impulsive overvoltage, and protection against inductive loads. They operate efficiently within a voltage range of 10 to 30Vdc, with a no-load supply current of ? 10mA and a load current of ? 200mA. The sensors are designed to withstand harsh environments, with an operating temperature range of -25°C to +70°C and an IP67 degree of protection against dust and water ingress.
Installation is straightforward with the included 2m PVC cable and two M12x1 nuts, and the sensors are compatible with a variety of mounting options due to their unshielded design. The Datasensing AM1/CP-2A Sensors are CE and UR approved, ensuring compliance with international standards, and are built to endure shocks and vibrations as per IEC 60068-2-6 and IEC 60068-2-27 standards. Ideal for applications requiring precise proximity detection, these sensors offer reliable performance and easy integration into existing systems.
- Nominal sensing distance:
- 4mm
- Operanting distance:
- 0 3,2mm
- Standard target:
- 12x12mm FE360
- Correction Factor:
- copper: 0,41 / aluminium: 0,47 / brass: 0,56 / stainless steel: 1,15
- Thermal drift of Sr:
- < 10%
- Repeat Accuracy:
- < 5% (UB 24V Ta=23°C ±5°C)
- Hysteresis:
- 1 20%
- Description:
- M12 standard no-flush mount
- Functions:
- Proximity
- Output type:
- PNP
- Output Function:
- NC
- Switching frequency:
- 2kHz
- Operating Voltage:
- 10...30Vdc
- No-Load supply current:
- ? 10mA
- Load current:
- ? 200mA
- Leakage current:
- ? 10?A
- Output voltage drop:
- ? 1,8V @200mA
- Max ripple content:
- ? 10%
- LED indicators:
- Yellow LED output state
- Time delay before availability:
- ? 50ms
- Short-circuit protection:
- Yes
- Reverse Polarity Protection:
- Yes
- Impulsive Overvoltage Protection:
- Yes
- Protection against inductive loads:
- Yes
- Mounting:
- Unshielded
- Weight:
- 70g
- Housing Material:
- Nickel-plated brass
- Connections:
- 2m PVC Cable
- Active Head Material:
- PBT
- Tightening torque:
- 10Nm
- Material:
- Nickel-plated brass
- Diameter/Dimension:
- M12
- Approvals:
- CE UR
- EMC compatibility:
- IEC 60947-5-2
- Shocks and vibrations:
- Vibration IEC 60068-2-6 / Shock IEC 60068-2-27
- Degree of protection:
- IP67
- Supplied Accessories:
- 2 nuts M12x1
- Mechanical Protection:
- IP67
- 2D Files:
- View
- 3D Files:
- View
- CAD Files:
- View
- EU Declarations:
- View
- Catalog:
- View
- User Manuals:
- View
