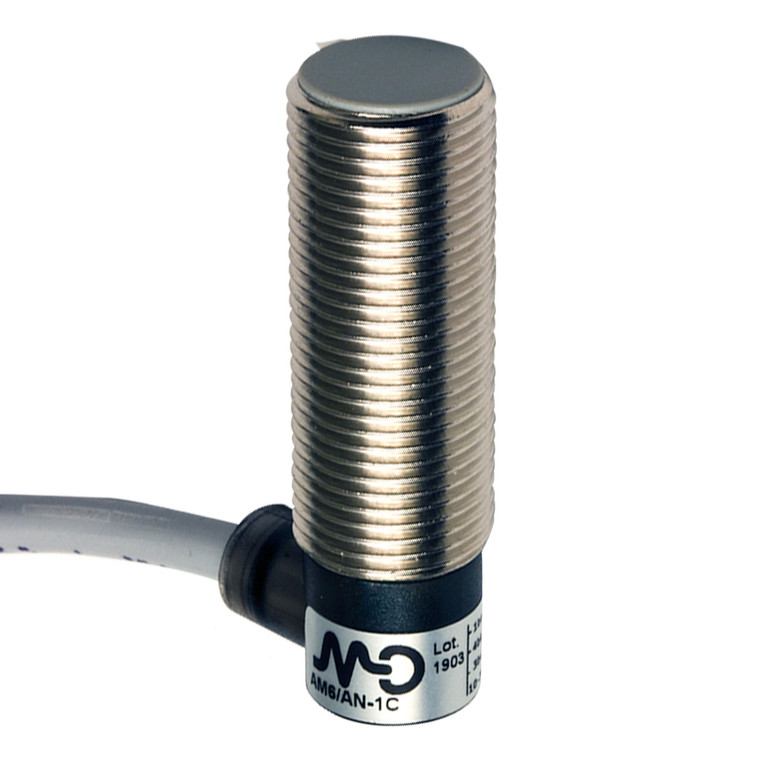

Datasensing AM6/AN-1C Sensors
Datasensing
$39.36
The Datasensing AM6/AN-1C Sensors are high-performance inductive sensors designed for precision and reliability. Featuring a compact M12 short shielded design, these sensors are ideal for applications requiring a nominal sensing distance of 2mm and an operating distance of 0 to 1.62mm. The sensors are equipped with a 2m PVC cable with a 90° output, ensuring flexible installation options.
Constructed with a durable nickel-plated brass housing and an active head made of PBT, these sensors are built to withstand harsh environments, with an operating temperature range of -25°C to +70°C and an IP67 degree of protection. The sensors offer a switching frequency of 2kHz and are compatible with a wide range of materials, with correction factors for copper, aluminum, brass, and stainless steel.
The AM6/AN-1C Sensors feature an NPN output type with a normally open (NO) output function, providing reliable performance with a load current of up to 200mA and a low output voltage drop. They are equipped with essential protections, including short-circuit, reverse polarity, impulsive overvoltage, and protection against inductive loads.
Additional features include a yellow LED indicator for output state, a time delay before availability of ? 50ms, and compliance with CE and UR approvals. The sensors are also designed to meet EMC compatibility standards (IEC 60947-5-2) and withstand shocks and vibrations (Vibration IEC 60068-2-6 / Shock IEC 60068-2-27). Supplied with two M12x1 nuts, these sensors are ready for immediate integration into your system.
- Nominal sensing distance:
- 2mm
- Operanting distance:
- 0 1,62mm
- Standard target:
- 12x12mm FE360
- Correction Factor:
- copper: 0,22 / aluminium: 0,31 / brass: 0,41 / stainless steel: 0,77
- Thermal drift of Sr:
- < 10%
- Repeat Accuracy:
- < 5% (UB 24V Ta=23°C ±5°C)
- Hysteresis:
- 1 20%
- Description:
- M12 short case flush mount
- Functions:
- Proximity
- Output type:
- NPN
- Output Function:
- NO
- Switching frequency:
- 2kHz
- Operating Voltage:
- 10...30Vdc
- No-Load supply current:
- ? 10mA
- Load current:
- ? 200mA
- Leakage current:
- ? 10?A
- Output voltage drop:
- ? 1,8V @200mA
- Max ripple content:
- ? 10%
- LED indicators:
- Yellow LED output state
- Time delay before availability:
- ? 50ms
- Short-circuit protection:
- Yes
- Reverse Polarity Protection:
- Yes
- Impulsive Overvoltage Protection:
- Yes
- Protection against inductive loads:
- Yes
- Mounting:
- Shielded
- Weight:
- 60g
- Housing Material:
- Nickel-plated brass
- Connections:
- 2m PVC Cable - 90° Output
- Active Head Material:
- PBT
- Tightening torque:
- 10Nm
- Material:
- Nickel-plated brass
- Diameter/Dimension:
- M12
- Approvals:
- CE UR
- EMC compatibility:
- IEC 60947-5-2
- Shocks and vibrations:
- Vibration IEC 60068-2-6 / Shock IEC 60068-2-27
- Degree of protection:
- IP67
- Supplied Accessories:
- 2 nuts M12x1
- Mechanical Protection:
- IP67
