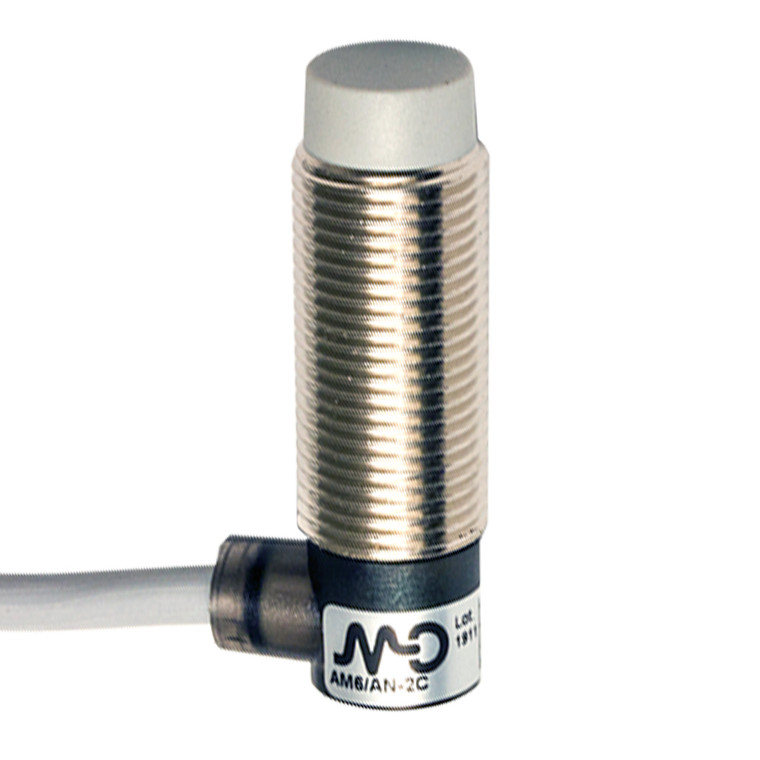

Datasensing AM6/AN-2C Sensors

The Datasensing AM6/AN-2C Sensors are high-performance inductive sensors designed for precision and reliability in various industrial applications. Featuring a compact M12 short unshielded design, these sensors offer a nominal sensing distance of 4mm and an operating distance of 0 to 3.2mm, making them ideal for detecting standard targets of 12x12mm FE360. With a robust nickel-plated brass housing and PBT active head material, they ensure durability and longevity even in challenging environments. These sensors are equipped with a 2m PVC cable with a 90° output, providing flexibility in installation. The NPN output type with NO function and a switching frequency of 2kHz ensures fast and accurate response times. They operate efficiently within a voltage range of 10 to 30Vdc, with a low no-load supply current of ? 10mA and a load current capacity of ? 200mA. Safety and protection are paramount, with features such as short-circuit protection, reverse polarity protection, impulsive overvoltage protection, and protection against inductive loads. The sensors are designed to withstand harsh conditions, with an operating temperature range of -25°C to +70°C and a high degree of protection rated at IP67. Additionally, they are CE and UR approved, ensuring compliance with international standards. The Datasensing AM6/AN-2C Sensors are versatile, with models available in standard, short body, and long distance configurations, as well as ATEX models for hazardous environments upon request. They come with supplied accessories, including two M12x1 nuts, and are compatible with IEC 60947-5-2 EMC standards, ensuring reliable performance in environments with shocks and vibrations.
