Datasensing AM6/AP-1A848QE5 Sensors

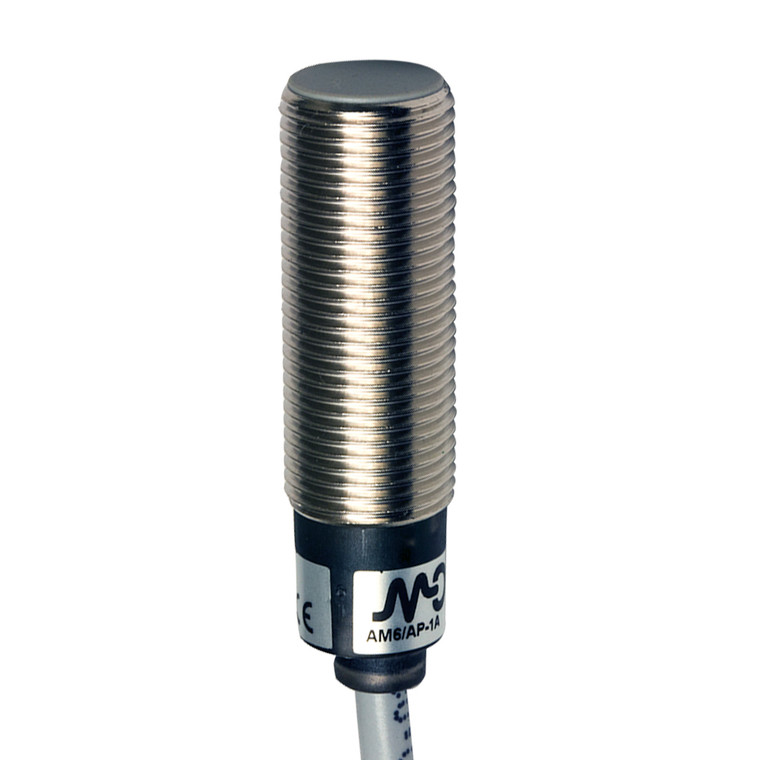

The Datasensing AM6/AP-1A848QE5 is a high-performance inductive sensor designed for precision and reliability. Featuring a compact M12 short shielded design, this sensor is equipped with a NO/PNP output and a flexible 3-meter axial cable for versatile installation. The housing is completely threaded, ensuring secure mounting and durability. With a nominal sensing distance of 2mm and an operating range of 0 to 1.62mm, it is ideal for detecting standard targets of 12x12mm FE360. The sensor offers excellent correction factors for various materials, including copper, aluminum, brass, and stainless steel, and maintains a thermal drift of Sr under 10%. It boasts a repeat accuracy of less than 5% and a hysteresis range of 1 to 20%. Operating at a switching frequency of 2kHz, it supports a voltage range of 10 to 30Vdc, with a no-load supply current of ? 10mA and a load current of ? 200mA. The sensor is equipped with a yellow LED indicator for output state, and features comprehensive protection against short-circuits, reverse polarity, impulsive overvoltage, and inductive loads. Constructed from nickel-plated brass with a PBT active head, it offers robust mechanical protection rated at IP67, and is designed to withstand shocks and vibrations as per IEC standards. The sensor is supplied with two M12x1 nuts for easy installation and is approved with CE and UR certifications, ensuring compliance with EMC compatibility standards. Suitable for a wide range of industrial applications, it operates efficiently in temperatures ranging from -25°C to +70°C.
