Datasensing AM6/AP-1C86 Sensors
Datasensing
$45.09

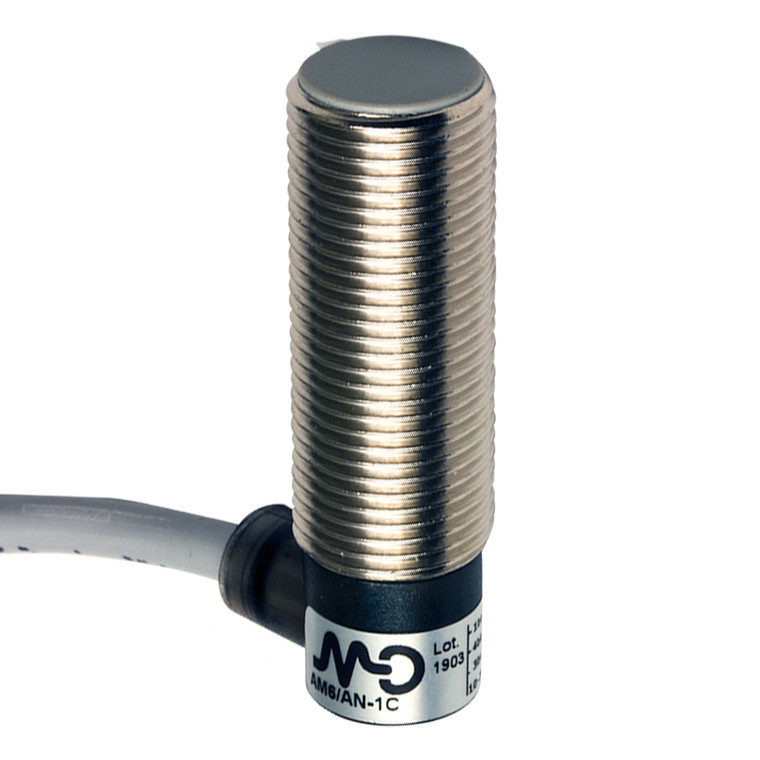

The Datasensing AM6/AP-1C86 Sensor is a high-performance inductive sensor designed for precision and reliability. Featuring a compact M12 short shielded design, this sensor is equipped with a NO/PNP output and a 5-meter PVC cable with a 90° output for versatile installation. It offers a nominal sensing distance of 2mm and operates effectively within a range of 0 to 1.62mm, making it ideal for detecting standard targets of 12x12mm FE360. The sensor boasts a robust nickel-plated brass housing and an active head made of PBT, ensuring durability and resistance to harsh environments.
With a switching frequency of 2kHz and an operating voltage range of 10 to 30Vdc, this sensor is engineered for high-speed applications. It features a low no-load supply current of ? 10mA and a load current capacity of ? 200mA, with a minimal output voltage drop of ? 1.8V at 200mA. The sensor is equipped with a yellow LED indicator for output state visibility and includes comprehensive protection features such as short-circuit, reverse polarity, impulsive overvoltage, and protection against inductive loads.
Designed for shielded mounting, the sensor is CE and UR approved, ensuring compliance with international standards. It offers excellent EMC compatibility as per IEC 60947-5-2 and withstands shocks and vibrations according to IEC 60068-2-6 and IEC 60068-2-27. The sensor is supplied with two M12x1 nuts for secure installation and operates within a temperature range of -25°C to +70°C, with an IP67 mechanical protection rating for reliable performance in demanding conditions.
- Nominal sensing distance:
- 2mm
- Operanting distance:
- 0 1,62mm
- Standard target:
- 12x12mm FE360
- Correction Factor:
- copper: 0,22 / aluminium: 0,31 / brass: 0,41 / stainless steel: 0,77
- Thermal drift of Sr:
- < 10%
- Repeat Accuracy:
- < 5% (UB 24V Ta=23°C ±5°C)
- Hysteresis:
- 1 20%
- Description:
- M12 short case flush mount
- Functions:
- Proximity
- Output type:
- PNP
- Output Function:
- NO
- Switching frequency:
- 2kHz
- Operating Voltage:
- 10...30Vdc
- No-Load supply current:
- ? 10mA
- Load current:
- ? 200mA
- Leakage current:
- ? 10?A
- Output voltage drop:
- ? 1,8V @200mA
- Max ripple content:
- ? 10%
- LED indicators:
- Yellow LED output state
- Time delay before availability:
- ? 50ms
- Short-circuit protection:
- Yes
- Reverse Polarity Protection:
- Yes
- Impulsive Overvoltage Protection:
- Yes
- Protection against inductive loads:
- Yes
- Mounting:
- Shielded
- Housing Material:
- Nickel-plated brass
- Connections:
- 5m PVC Cable - 90° output
- Active Head Material:
- PBT
- Tightening torque:
- 10Nm
- Material:
- Nickel-plated brass
- Diameter/Dimension:
- M12
- Approvals:
- CE UR
- EMC compatibility:
- IEC 60947-5-2
- Shocks and vibrations:
- Vibration IEC 60068-2-6 / Shock IEC 60068-2-27
- Supplied Accessories:
- 2 nuts M12x1
- Dimensions:
- M12 x 1 / L = 39,8mm
- Operating Temperature:
- -25°C +70°C
- Mechanical Protection:
- IP67
