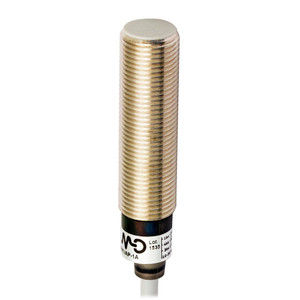

The Datasensing AM6/AP-3A86AN Sensors are high-performance inductive sensors designed for reliable proximity detection. Featuring a compact M12 shielded short case, these sensors offer a nominal sensing distance of 4mm and an operating distance of 0 to 3.2mm. They are equipped with a PNP output type and a normally open (NO) output function, ensuring efficient operation with a switching frequency of up to 2kHz. The sensors are built with robust nickel-plated brass housing and a durable PBT active head material, providing excellent resistance to harsh environments.
With a wide operating voltage range of 10 to 30Vdc and a low no-load supply current of ? 10mA, these sensors are energy-efficient and suitable for various industrial applications. They feature comprehensive protection mechanisms, including short-circuit, reverse polarity, impulsive overvoltage, and protection against inductive loads, ensuring long-lasting performance and reliability.
The sensors are equipped with a 5m PVC cable for easy installation and come with two M12x1 nuts for secure mounting. They are designed to withstand extreme temperatures ranging from -25°C to +70°C and offer mechanical protection with an IP67 rating. Additionally, the sensors are approved with CE and UR certifications and comply with EMC compatibility standards IEC 60947-5-2, making them a dependable choice for demanding environments.
- Nominal sensing distance:
- 4mm
- Operanting distance:
- 0 3,2mm
- Standard target:
- 12x12mm FE360
- Correction Factor:
- copper: 0,33 / aluminium: 0,4 / brass: 0,5 / stainless steel: 1,05
- Thermal drift of Sr:
- < 10%
- Repeat Accuracy:
- < 5% (UB 24V Ta=23°C ±5°C)
- Hysteresis:
- 1 20%
- Description:
- M12 short case flush mount
- Functions:
- Proximity
- Output type:
- PNP
- Output Function:
- NO
- Switching frequency:
- 2kHz
- Operating Voltage:
- 10...30Vdc
- No-Load supply current:
- ? 10mA
- Load current:
- ? 200mA
- Leakage current:
- ? 10?A
- Output voltage drop:
- ? 1,8V @200mA
- Max ripple content:
- ? 10%
- LED indicators:
- Yellow LED output state
- Time delay before availability:
- ? 50ms
- Short-circuit protection:
- Yes
- Reverse Polarity Protection:
- Yes
- Impulsive Overvoltage Protection:
- Yes
- Protection against inductive loads:
- Yes
- Mounting:
- Shielded
- Housing Material:
- Nickel-plated brass
- Connections:
- 5m PVC Cable
- Active Head Material:
- PBT
- Tightening torque:
- 10Nm
- Material:
- Nickel-plated brass
- Diameter/Dimension:
- M12
- Approvals:
- CE UR II 3G Ex nA IIC T6 Gc II 3D Ex tc IIIB T85°C Dc
- EMC compatibility:
- IEC 60947-5-2
- Shocks and vibrations:
- Vibration IEC 60068-2-6 / Shock IEC 60068-2-27
- Supplied Accessories:
- 2 nuts M12x1
- Dimensions:
- M12 x 1 / L = 39,8mm
- Operating Temperature:
- -25°C +70°C
- Mechanical Protection:
- IP67
