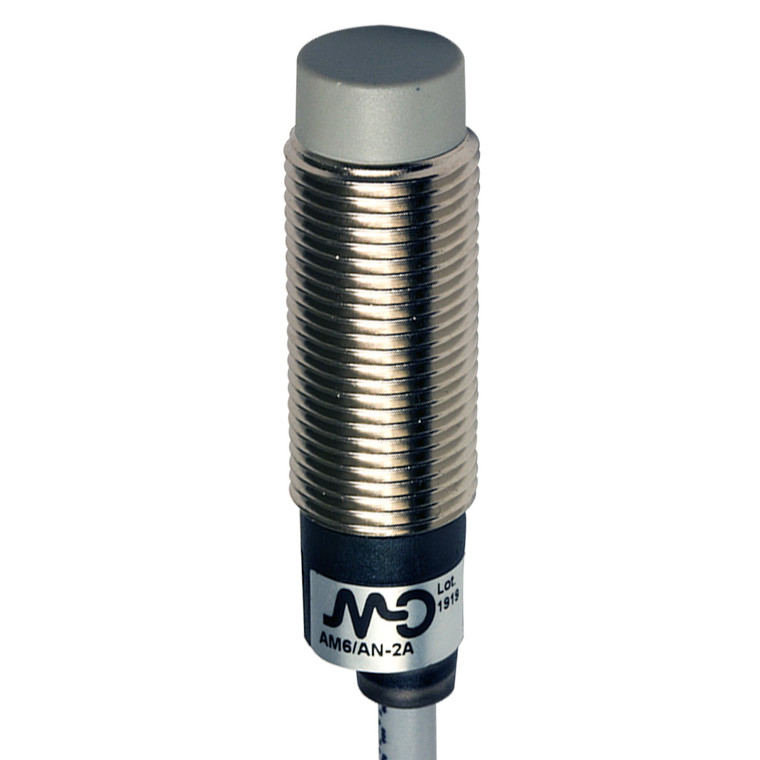

Datasensing AM6/AP-4A86AN Sensors

The Datasensing AM6/AP-4A86AN Sensors are high-performance inductive sensors designed for precise proximity detection. Featuring an M12 unshielded design, these sensors operate with a nominal sensing distance of 8mm and an operating distance of 0 to 6.48mm. They are equipped with a 5-meter axial PVC cable and are suitable for various industrial applications, thanks to their robust nickel-plated brass housing and PBT active head material. These sensors are engineered for reliability, offering a switching frequency of 2kHz and a wide operating voltage range of 10 to 30Vdc. They ensure minimal power consumption with a no-load supply current of ? 10mA and a load current capacity of ? 200mA. The sensors are equipped with a yellow LED indicator for output state, providing clear visual feedback. Safety and durability are prioritized with features such as short-circuit protection, reverse polarity protection, and impulsive overvoltage protection. The sensors are also designed to withstand harsh environments, with an IP67 mechanical protection rating and compliance with EMC compatibility standards IEC 60947-5-2. They are approved for use in potentially explosive atmospheres, meeting CE UR II 3G Ex nA IIC T6 Gc and II 3D Ex tc IIIB T85°C Dc standards. With a compact M12 x 1 / L = 39.8mm dimension, these sensors are easy to install and come with two M12x1 nuts for secure mounting. They are capable of operating in temperatures ranging from -25°C to +70°C, making them versatile for various industrial settings. The Datasensing AM6/AP-4A86AN Sensors are an ideal choice for applications requiring precise and reliable proximity sensing.
