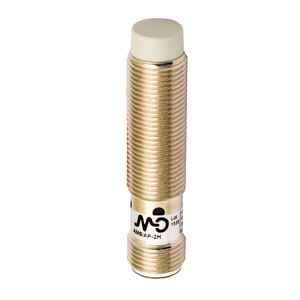

Datasensing AM6/CP-2H Sensors
Datasensing
$41.88
The Datasensing AM6/CP-2H Sensors are high-performance inductive sensors designed for precision and reliability in various industrial applications. Featuring a compact M12 short unshielded design, these sensors offer a nominal sensing distance of 4mm and an operating distance of 0 to 3.2mm, making them ideal for close-range detection tasks. The sensors are equipped with a PNP output type and an NC output function, ensuring efficient signal processing with a switching frequency of 2kHz.
Constructed with a robust nickel-plated brass housing and an active head made of PBT, the AM6/CP-2H Sensors are built to withstand harsh environments, with an operating temperature range of -25°C to +70°C and a degree of protection rated at IP67. The sensors are also equipped with comprehensive protection features, including short-circuit, reverse polarity, impulsive overvoltage, and protection against inductive loads, ensuring durability and longevity.
The sensors come with an M12 plug connection and are supplied with two M12x1 nuts for easy installation. They are compatible with a wide range of materials, with correction factors for copper, aluminum, brass, and stainless steel, and are designed to meet CE and UR approvals, as well as EMC compatibility with IEC 60947-5-2 standards. With a weight of just 20g and a compact design, the Datasensing AM6/CP-2H Sensors are an excellent choice for applications requiring precise proximity detection and reliable performance.
- Nominal sensing distance:
- 4mm
- Operanting distance:
- 0 3,2mm
- Standard target:
- 12x12mm FE360
- Correction Factor:
- copper: 0,41 / aluminium: 0,47 / brass: 0,56 / stainless steel: 1,15
- Thermal drift of Sr:
- < 10%
- Repeat Accuracy:
- < 5% (UB 24V Ta=23°C ±5°C)
- Hysteresis:
- 1 20%
- Description:
- M12 short case no-flush mount
- Functions:
- Proximity
- Output type:
- PNP
- Output Function:
- NC
- Switching frequency:
- 2kHz
- Operating Voltage:
- 10...30Vdc
- No-Load supply current:
- ? 10mA
- Load current:
- ? 200mA
- Leakage current:
- ? 10?A
- Output voltage drop:
- ? 1,8V @200mA
- Max ripple content:
- ? 10%
- LED indicators:
- Yellow LED output state
- Time delay before availability:
- ? 50ms
- Short-circuit protection:
- Yes
- Reverse Polarity Protection:
- Yes
- Impulsive Overvoltage Protection:
- Yes
- Protection against inductive loads:
- Yes
- Mounting:
- Unshielded
- Weight:
- 20g
- Housing Material:
- Nickel-plated brass
- Connections:
- M12 Plug
- Active Head Material:
- PBT
- Tightening torque:
- 10Nm
- Material:
- Nickel-plated brass
- Diameter/Dimension:
- M12
- Approvals:
- CE UR
- EMC compatibility:
- IEC 60947-5-2
- Shocks and vibrations:
- Vibration IEC 60068-2-6 / Shock IEC 60068-2-27
- Degree of protection:
- IP67
- Supplied Accessories:
- 2 nuts M12x1
- Mechanical Protection:
- IP67
- 2D Files:
- View
- 3D Files:
- View
- CAD Files:
- View
- EU Declarations:
- View
- Catalog:
- View
- User Manuals:
- View
