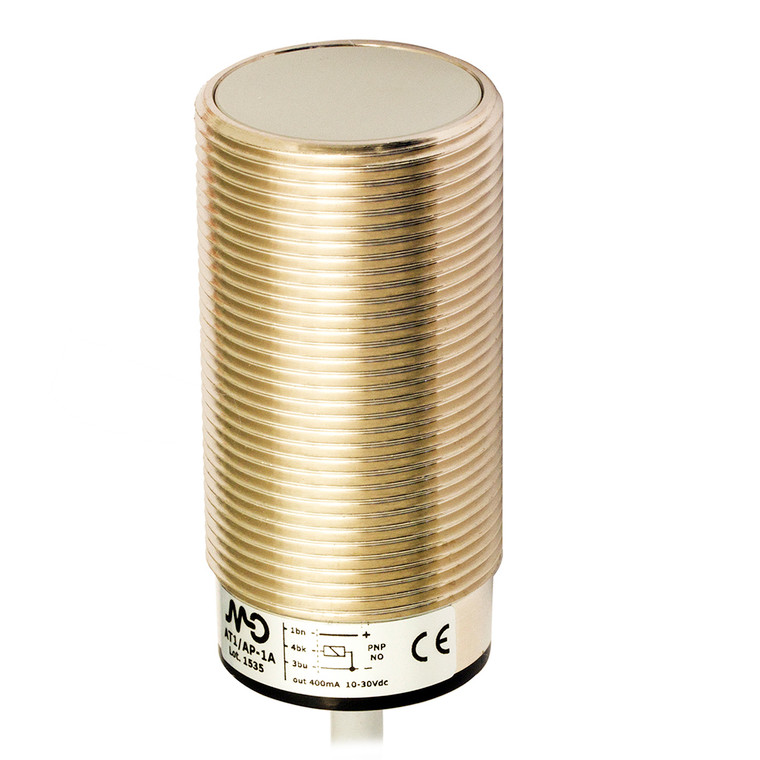

Datasensing AT1/CN-1A Sensors

The Datasensing AT1/CN-1A Sensors are high-performance inductive sensors designed for precision and reliability. Featuring a nominal sensing distance of 10mm and an operating range of 0 to 8.1mm, these sensors are ideal for proximity detection in various industrial applications. The M30 standard flush mount design ensures easy installation, while the shielded construction provides complete protection against electrical damages. With a robust nickel-plated brass housing and PBT active head material, these sensors are built to withstand harsh environments, offering an operating temperature range of -25°C to +70°C. Equipped with a 2m PVC cable, the AT1/CN-1A sensors support NPN output with a normally closed (NC) function, ensuring reliable performance with a switching frequency of 200Hz. The sensors feature comprehensive protection mechanisms, including short-circuit, reverse polarity, impulsive overvoltage, and protection against inductive loads. The yellow LED indicator provides a clear output state, while the IP67 mechanical protection rating guarantees durability against dust and water ingress. These sensors are compatible with a wide range of models, including standard, long-distance, and ATEX category 3 models available upon request. With options for 2, 3, and 4-wire configurations and complementary output models (NO + NC), the AT1/CN-1A sensors offer versatility to meet diverse application needs. The sensors are CE and UR approved, ensuring compliance with international standards, and are designed to withstand shocks and vibrations as per IEC 60068-2-6 and IEC 60068-2-27 standards. Supplied with two M30x1.5 nuts, these sensors are ready for immediate integration into your system.
