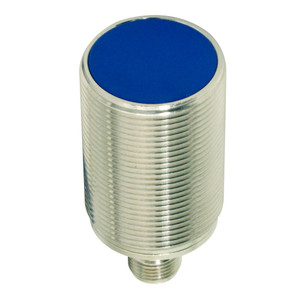

Datasensing AT6/AN-3H Sensors

The Datasensing AT6/AN-3H Sensors are high-performance inductive sensors designed for precision and reliability in various industrial applications. Featuring a compact M30 shielded short housing, these sensors offer a nominal sensing distance of 15mm and an operating distance of 0 to 12.1mm, making them ideal for detecting standard targets of 45x45mm FE360. With a robust nickel-plated brass construction and IP67 mechanical protection, they are built to withstand harsh environments and provide complete protection against electrical damages, including short-circuit, reverse polarity, and impulsive overvoltage protection. These sensors are equipped with an NPN output type and a normally open (NO) output function, ensuring efficient and accurate proximity detection. The M12 plug connection allows for easy integration into existing systems, while the yellow LED indicator provides a clear output state. The AT6/AN-3H models are versatile, offering options with 2, 3, and 4 wires, as well as complementary outputs (NO + NC) for added flexibility. Designed to operate within a voltage range of 10 to 30Vdc, these sensors have a low no-load supply current of ? 20mA and can handle a load current of up to 400mA. With a high switching frequency of 200Hz and a repeat accuracy of less than 5%, they deliver reliable performance in dynamic applications. The sensors also feature a thermal drift of Sr of less than 10% and a hysteresis range of 1 to 20%, ensuring consistent operation across varying temperatures from -25°C to +70°C. The AT6/AN-3H Sensors are CE and cULus approved, with EMC compatibility according to IEC 60947-5-2 standards. They are designed to withstand shocks and vibrations as per IEC 60068-2-6 and IEC 60068-2-27 standards, making them suitable for demanding industrial environments. Supplied with two M30x1.5 nuts for secure mounting, these sensors are a reliable choice for applications requiring precise and durable sensing solutions.
