Datasensing AT6/AP-2H Sensors

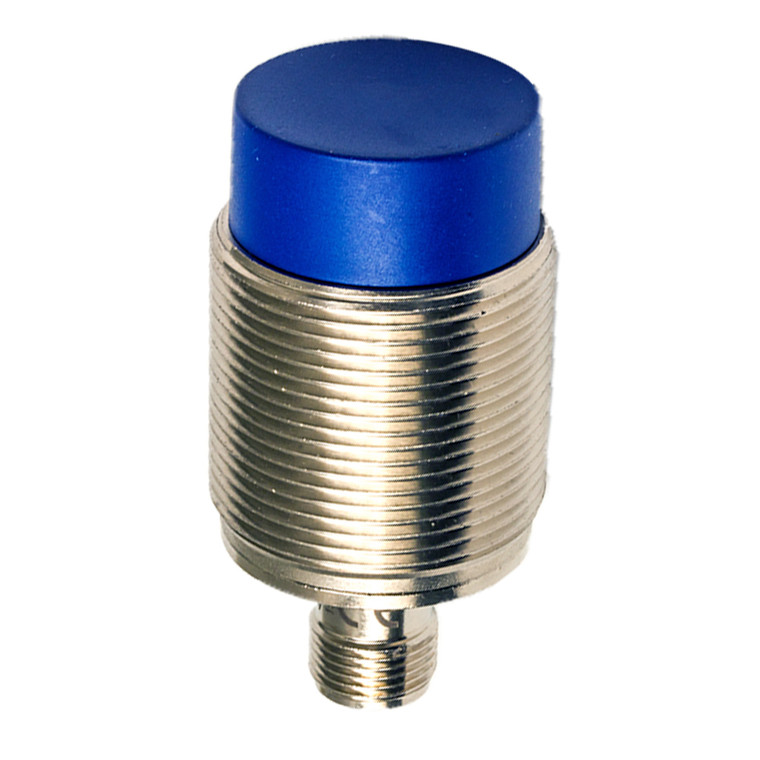

The Datasensing AT6/AP-2H Sensors are high-performance inductive sensors designed for precision and reliability. Featuring an M30 unshielded short housing, these sensors offer a nominal sensing distance of 15mm and an operating distance of 0 to 12.1mm, making them ideal for various industrial applications. The sensors are equipped with a PNP output type and a normally open (NO) output function, ensuring efficient signal transmission. With a switching frequency of 200Hz and an operating voltage range of 10 to 30Vdc, they provide fast and accurate detection. Constructed with a robust nickel-plated brass housing and an active head made of PBT, the AT6/AP-2H Sensors are built to withstand harsh environments, offering complete protection against electrical damages, including short-circuit, reverse polarity, and impulsive overvoltage protection. The sensors are also equipped with a yellow LED indicator for output state visibility and are designed to handle a load current of up to 400mA with minimal leakage and voltage drop. These sensors are compatible with a wide range of models, including standard, long-distance, and ATEX category 3 models available upon request. They also feature models with complementary output (NO + NC) and are designed to be mounted unshielded with a tightening torque of 50Nm. The sensors are CE and cULus approved, ensuring compliance with international standards, and offer IP67 mechanical protection for reliable performance in demanding conditions. Supplied with two M30x1.5 nuts, the Datasensing AT6/AP-2H Sensors are a versatile and durable solution for your proximity sensing needs.
