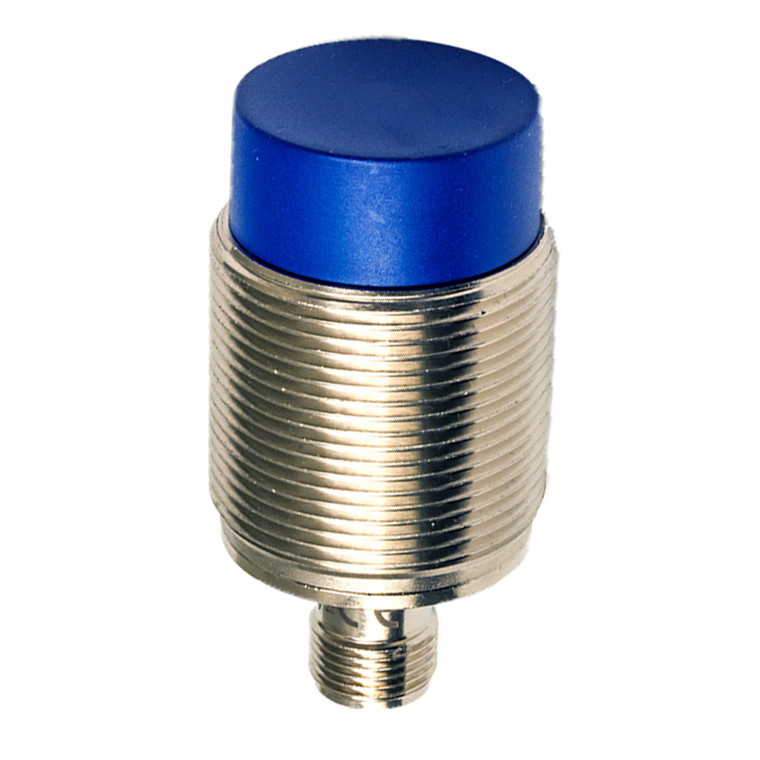

Datasensing AT6/AN-2H Sensors

The Datasensing AT6/AN-2H Sensors are high-performance inductive sensors designed for precision and reliability. Featuring a robust M30 unshielded short housing, these sensors are equipped with a NO/NPN output and an M12 connection for seamless integration. With a nominal sensing distance of 15mm and an operating range of 0 to 12.1mm, they are ideal for various industrial applications. The sensors offer a wide range of models, including standard and long-distance options, with cable, M12, and plug cable exits. They are available with 2, 3, and 4 wire configurations, and ATEX models, category 3, can be requested for specialized environments. These sensors provide complete protection against electrical damages, including short-circuit, reverse polarity, and impulsive overvoltage protection. They are designed to withstand harsh conditions with a thermal drift of Sr less than 10%, repeat accuracy under 5%, and a hysteresis range of 1 to 20%. The sensors operate efficiently within a voltage range of 10 to 30Vdc, with a no-load supply current of ? 20mA and a load current of ? 400mA. The output voltage drop is minimal at ? 1V @400mA, ensuring reliable performance. Constructed from durable nickel-plated brass with an active head made of PBT, these sensors are built to last. They are IP67 rated for mechanical protection, making them resistant to dust and water ingress. The sensors are also CE and cULus approved, ensuring compliance with international standards. With a compact design measuring M30 x 1.5 / L = 60mm and a weight of 80g, they are easy to install and maintain. The sensors come with supplied accessories, including two M30x1.5 nuts, and feature yellow LED indicators for output state visibility. Suitable for operating temperatures ranging from -25°C to +70°C, the Datasensing AT6/AN-2H Sensors are a reliable choice for demanding industrial environments.
