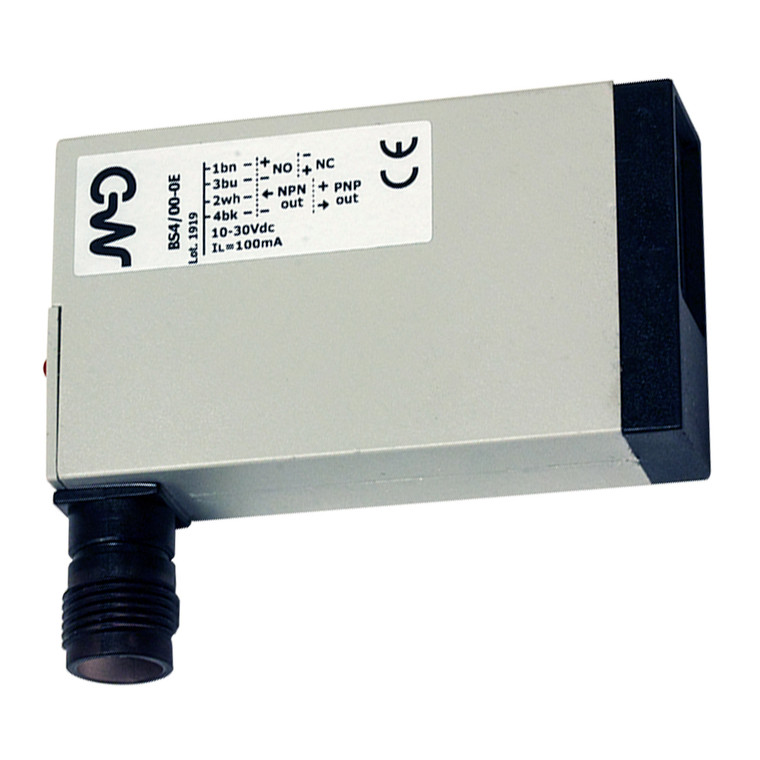

Datasensing BS4/00-0E Sensors
Datasensing
$187.99
The Datasensing BS4/00-0E Sensors are advanced photoelectric sensors designed for precise and reliable detection. Featuring a diffuse reflection function with a nominal sensing distance of 200mm, these sensors are ideal for short-distance applications. The sensors offer a wide range of models, including diffuse, retro-reflective, and polarized options, ensuring versatility for various industrial needs.
Equipped with a multifunctional DECOUT® output, the sensors provide logic connection possibilities with selectable NPN/PNP and NO/NC output functions. The sensitivity can be easily adjusted using a trimmer, allowing for fine-tuning to suit specific requirements. With a high switching frequency of 80Hz and a rapid response time of 6.25ms, these sensors ensure quick and accurate performance.
The BS4/00-0E Sensors are designed for durability and reliability, featuring a robust ABS housing and an IP65 degree of protection, making them suitable for harsh environments. The sensors are completely filled with resin, providing enhanced protection against shocks and vibrations as per IEC standards. The LED status indicator offers clear visibility of the output status, while the M12 plug connection ensures easy installation and maintenance.
Operating within a voltage range of 10
30VDC, these sensors have a low no-load supply current of ? 25mA and a load current capacity of ?100mA. They are equipped with short-circuit and reverse polarity protection, ensuring safe and stable operation. The sensors are also resistant to external light interference, withstanding up to 3000lux from incandescent lamps and 10000lux from other sources.
Supplied with ST01 mounting brackets and screws, the Datasensing BS4/00-0E Sensors are ready for immediate integration into your system. With CE approvals and EMC compatibility, these sensors meet high standards of quality and performance, making them a reliable choice for your sensing needs.
- Nominal sensing distance:
- 200mm
- Repeat Accuracy:
- ? 5%
- Sensitivity adjustment:
- Trimmer
- Function Principle:
- Diffuse reflection (short distance, ?200mm)
- Optic position:
- Axial
- Output type:
- Decout NPN/PNP Selectable NO/NC Selectable
- Output Function:
- NO/NC Selectable
- Switching frequency:
- 80Hz
- Response time:
- 6,25ms
- Operating Voltage:
- 10 30VDC
- No-Load supply current:
- ? 25mA
- Load current:
- ?100mA
- Leakage current:
- ? 10?A
- Output voltage drop:
- ?1,2V@Iload=100mA
- Max ripple content:
- ?10%
- LED indicators:
- Red (output status)
- Time delay before availability:
- 200ms
- Short-circuit protection:
- Yes
- Reverse Polarity Protection:
- Yes
- Emission:
- LED Infrared (880nm)
- Interference to external light:
- 3000lux Incandescent Lamp, 10000lux
- Weight:
- 185g
- Housing Material:
- ABS
- Connections:
- M12 plug 90°
- Active Head Material:
- PMMA
- Operating temperature:
- - 25°C + 70°C ( without freeze)
- Diameter/Dimension:
- Cubic
- Approvals:
- CE
- EMC compatibility:
- EN 60947-5-2
- Shocks and vibrations:
- Vibration IEC 60068-2-6 / Shock IEC 60068-2-32
- Degree of protection:
- IP65
- Supplied Accessories:
- ST01 mounting brakets and screws
- Operating Temperature:
- - 25°C + 70°C (Without freeze)
- Mechanical Protection:
- IP65
