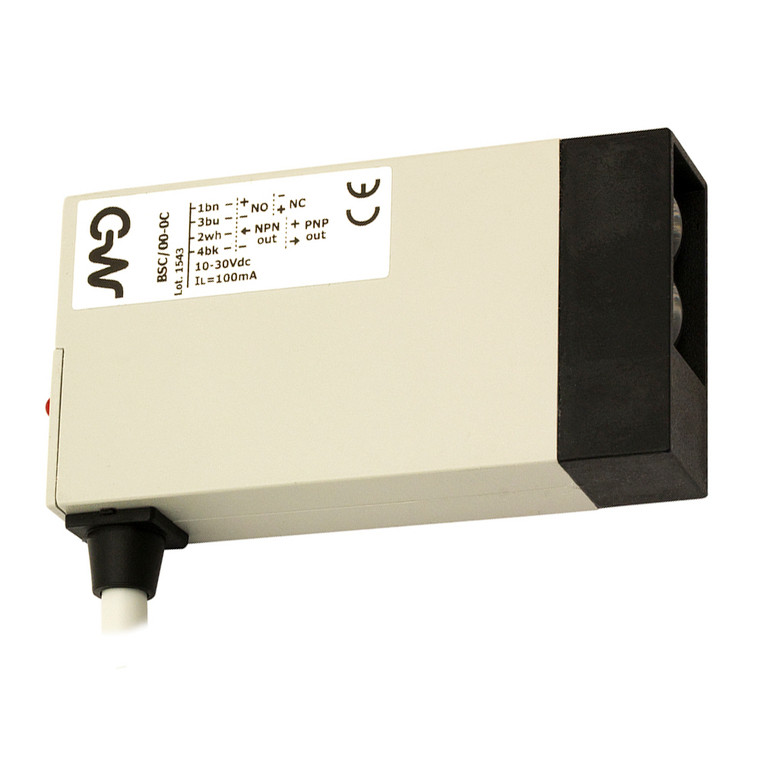

Datasensing BSC/00-0C86 Sensors
Datasensing
$193.16
The Datasensing BSC/00-0C86 Sensors are advanced photoelectric sensors designed for reliable and precise detection. Featuring a retroreflective function with an impressive nominal sensing distance of 8 meters, these sensors are equipped with a 5-meter PVC cable and a 90° optic position for versatile installation. The sensors offer a multifunctional DECOUT® output with selectable NPN/PNP and NO/NC options, providing flexibility in various applications. With a high switching frequency of 80Hz and a rapid response time of 6.25ms, they ensure quick and accurate performance.
These sensors are built to withstand challenging environments, with a robust ABS housing and IP65 mechanical protection. They operate efficiently within a wide voltage range of 10 to 30VDC and feature short-circuit and reverse polarity protection for enhanced safety. The LED infrared emission at 880nm ensures reliable operation even in high ambient light conditions, with interference resistance up to 10,000 lux.
The BSC/00-0C86 Sensors include sensitivity adjustment via a trimmer, allowing for precise calibration to suit specific needs. The LED status indicator provides clear output status visibility, while the completely resin-filled design enhances durability. Supplied with ST01 mounting brackets and screws, these sensors are easy to install and integrate into existing systems. Ideal for a variety of applications, they meet CE approvals and EMC compatibility standards, ensuring high performance and reliability.
- Nominal sensing distance:
- 8m
- Repeat Accuracy:
- ? 10%
- Sensitivity adjustment:
- Trimmer
- Function Principle:
- Retro-reflective
- Optic position:
- Axial
- Output type:
- Decout NPN/PNP Selectable NO/NC Selectable
- Output Function:
- NO/NC Selectable
- Switching frequency:
- 80Hz
- Response time:
- 6,25ms
- Operating Voltage:
- 10 30VDC
- No-Load supply current:
- ? 25mA
- Load current:
- ?100mA
- Leakage current:
- ? 10?A
- Output voltage drop:
- ?1,2V@Iload=100mA
- Max ripple content:
- ?10%
- LED indicators:
- Red (output status)
- Time delay before availability:
- 200ms
- Short-circuit protection:
- Yes
- Reverse Polarity Protection:
- Yes
- Emission:
- LED Infrared (880nm)
- Interference to external light:
- 3000lux Incandescent Lamp, 10000lux
- Weight:
- 185g
- Housing Material:
- ABS
- Connections:
- 5m PVC cable 90°
- Active Head Material:
- PMMA
- Operating temperature:
- - 25°C + 70°C ( without freeze)
- Diameter/Dimension:
- Cubic
- Approvals:
- CE
- EMC compatibility:
- EN 60947-5-2
- Shocks and vibrations:
- Vibration IEC 60068-2-6 / Shock IEC 60068-2-40
- Degree of protection:
- IP65
- Supplied Accessories:
- ST01 mounting brakets and screws
- Operating Temperature:
- - 25°C + 70°C (Without freeze)
- Mechanical Protection:
- IP65
