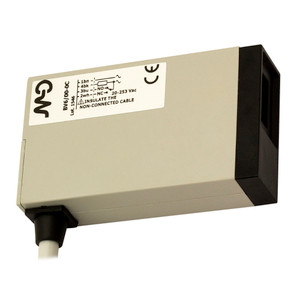

Datasensing BV2/00-0E Sensors
Datasensing
$197.97
The Datasensing BV2/00-0E Sensors are advanced photoelectric sensors designed for precise and reliable detection. Featuring a diffuse reflection principle, these sensors offer a nominal sensing distance of 100mm, making them ideal for short-distance applications. The sensors are equipped with a trimmer for sensitivity adjustment, allowing for fine-tuning to suit specific needs. With a robust TRIAC NO/NC output type, they provide versatile output functions and are capable of handling load currents ranging from 5 to 300mARMS.
These sensors are built to withstand challenging environments, with a durable ABS housing and an IP65 degree of protection, ensuring resistance to dust and water ingress. The M12 plug connection offers easy installation and secure connectivity. The sensors are equipped with a red LED indicator for output status, providing clear visual feedback.
Designed for high performance, the BV2/00-0E Sensors operate within a wide voltage range of 20 to 253VAC and feature a fast switching frequency of 25Hz with a response time of just 20ms. They are protected against short circuits and reverse polarity, ensuring safe and reliable operation. The sensors are also resistant to external light interference, withstanding up to 3000lux from incandescent lamps and 10000lux from other sources.
With a compact cubic design measuring 16x37x64mm and weighing 185g, these sensors are easy to integrate into various systems. They come with supplied accessories, including ST01 mounting brackets and screws, for convenient installation. The BV2/00-0E Sensors are CE approved and comply with EMC compatibility standards EN 60947-5-2, ensuring they meet high-quality and safety standards.
- Nominal sensing distance:
- 100mm
- Repeat Accuracy:
- ? 5%
- Sensitivity adjustment:
- Trimmer
- Function Principle:
- Diffuse reflection (short distance, ?200mm)
- Optic position:
- Axial
- Output type:
- TRIAC NO/NC
- Output Function:
- NO/NC
- Switching frequency:
- 25Hz
- Response time:
- 20ms
- Operating Voltage:
- 20...253VAC/50-60Hz
- No-Load supply current:
- 1,5W
- Load current:
- 5 300mARMS
- Leakage current:
- 1,5m ARMS max ( supply V=253Vac)
- Output voltage drop:
- ?2,5V@Iload=300mARMS
- LED indicators:
- Red (output status)
- Time delay before availability:
- 200ms
- Short-circuit protection:
- Yes
- Reverse Polarity Protection:
- Yes
- Emission:
- LED Infrared (880nm)
- Interference to external light:
- 3000lux Incandescent Lamp, 10000lux
- Weight:
- 185g
- Housing Material:
- ABS
- Connections:
- M12 plug 90°
- Active Head Material:
- PMMA
- Operating temperature:
- - 25°C + 70°C ( without freeze)
- Diameter/Dimension:
- Cubic
- Approvals:
- CE
- EMC compatibility:
- EN 60947-5-2
- Shocks and vibrations:
- Vibration IEC 60068-2-6 / Shock IEC 60068-2-43
- Degree of protection:
- IP65
- Supplied Accessories:
- ST01 mounting brakets and screws
- Operating Temperature:
- - 25°C + 70°C (Without freeze)
- Mechanical Protection:
- IP65
- 2D Files:
- View
- 3D Files:
- View
- CAD Files:
- View
- EU Declarations:
- View
- Catalog:
- View
- User Manuals:
- View
