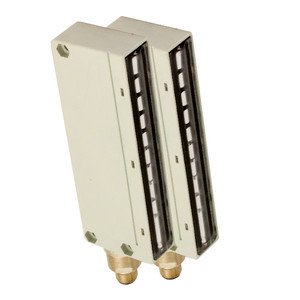

Datasensing BX04R/AD-HB Sensors

The Datasensing BX04R/AD-HB Sensors are advanced area sensor receivers designed for precise object detection. Equipped with 4 beams and a nominal sensing distance of 0.3 to 2 meters, these sensors are ideal for applications requiring high accuracy and reliability. The sensors feature a robust IP67 protection degree, ensuring complete protection against electrical damages and harsh environmental conditions. With a controlled height of 90mm and a beam spacing of 30mm, the BX04R/AD-HB can detect objects with irregular shapes, with a minimum detectable object size of 15mm. The sensors operate on a voltage range of 10 to 26VDC and offer both NPN and PNP output types with a NO output function. They boast a high switching frequency of 180Hz and quick response times for light/dark and dark/light transitions, making them suitable for fast-paced industrial environments. The sensors are equipped with LED indicators for easy alignment and output state monitoring, and they include features such as short-circuit protection, reverse polarity protection, and impulsive overvoltage protection. The housing is made of durable PBT material, and the active head is constructed from PC, ensuring longevity and resilience. The BX04R/AD-HB sensors come with supplied accessories, including 4 nuts M18x1, an adjustment key, and 2 90 angled brackets, facilitating easy installation. They are approved by CE and cULus and comply with EMC compatibility standards EN 60947-5-2. With a compact design measuring 45mm x 145mm x 20mm and weighing 115g, these sensors are a reliable choice for various industrial applications.
